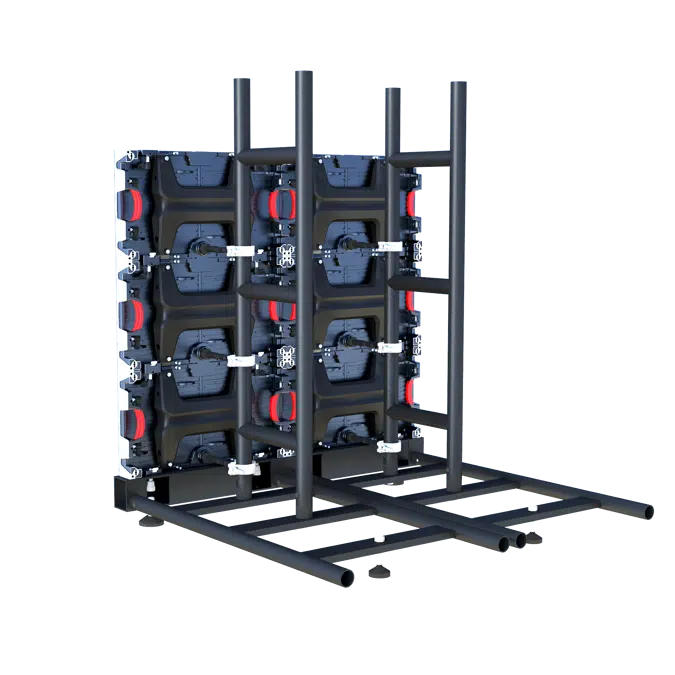

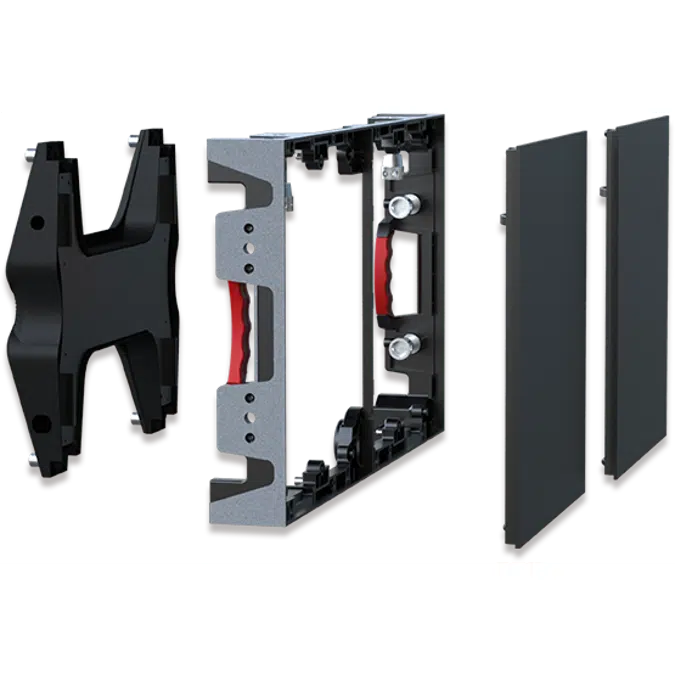

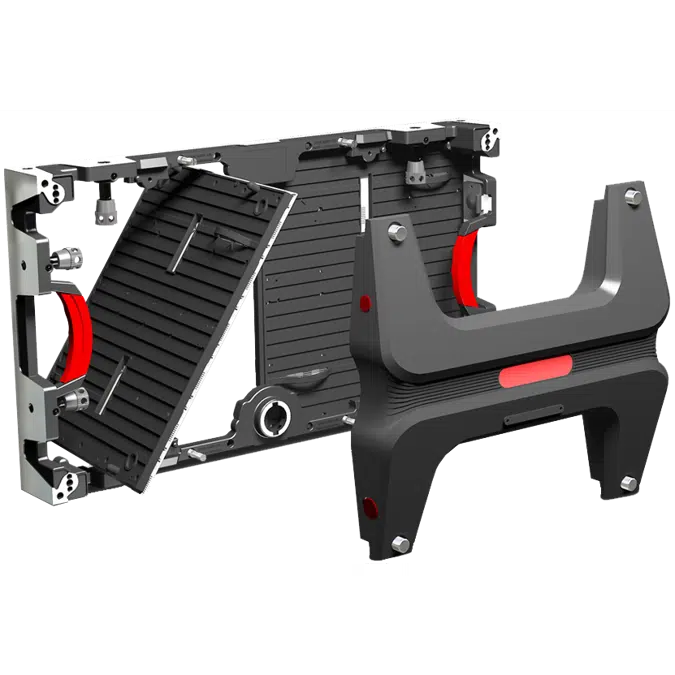

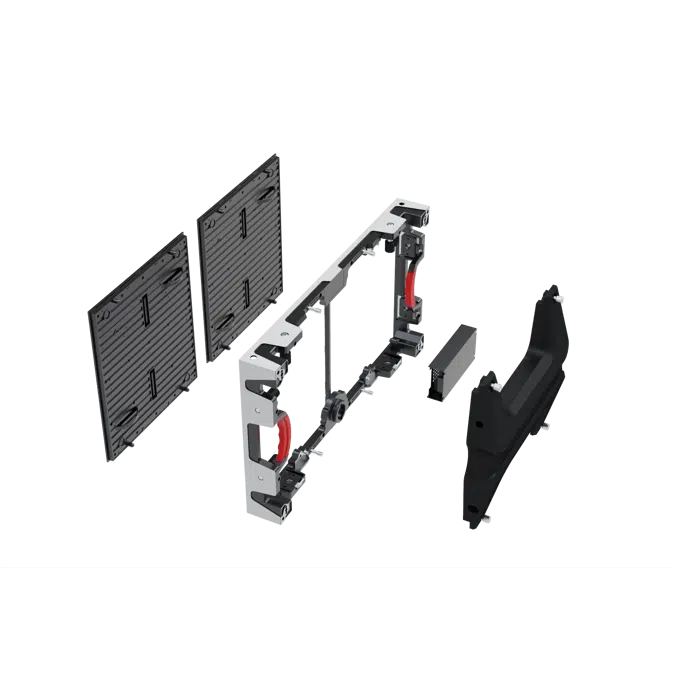

Axion Mobile Rental Cabinets

Axion Mobile Cabinet Panels

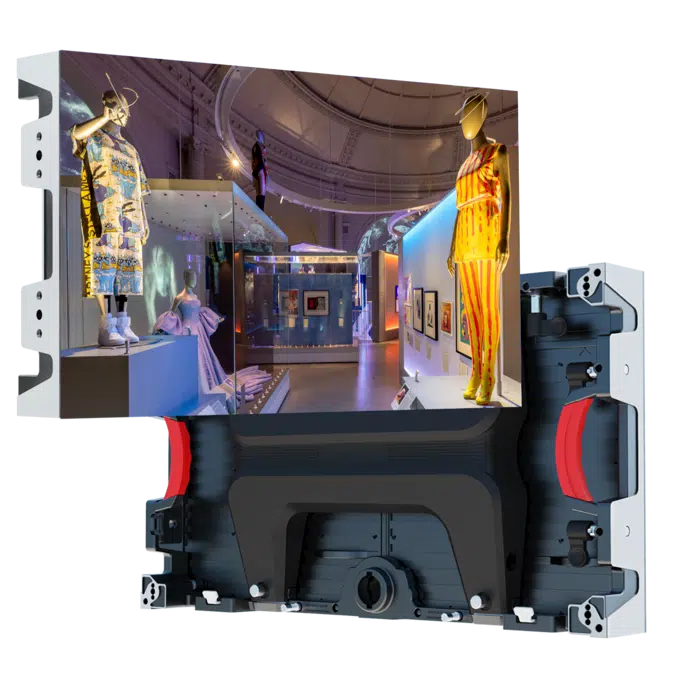

Axion Mobile offers the ease of 16:9 LED displays in a rental panel. Axion Mobile panels are the popular size for fixed 16:9 displays at 600 x 337.5 mm.

Available the most popular 16:9 pixel pitches, Beryllium is optimized for native 16:9 displays at 2K, 4K, 8K, and more!

Axion Mobile’s 16:9 panel aspect also makes it easy to make dual displays with a 32:9 aspect ratio.

Specification

Parameter	Value
Series Name	Axion Mobile
Maximum Brightness (nits)	Up to 1,200
Width	600 mm (23.6 in)
Height	337.5 mm (13.3 in)
Depth	58 mm (2.3 in)
Panel Aspect Ratio	16:09
Panel Weight	7.7 kg (17 lbs)
Modules per Panel	Up to 4 per panel
Bonding Wire	Copper
Power Common	Anode
Watts per Panel	109–138W max (38–48W average)
Watts per Sq. Meter	540–680W max (189–238W average)
Max Amps per Cascade	10
Operating Voltage	100–240V AC, 50/60 Hz
Operating Temperature	-10°C to +40°C
Viewing Angle (Horizontal)	160°
Viewing Angle (Vertical)	160°
LED Lifetime (hrs)	1,00,000
Contrast	Up to 6,000:1
Drivers	ICN 1069, ICN 2153 (depending on pitch)
Scan Rate	1:15, 1:27, 1:30, 1:60 (depending on pitch)
Processing Depth (bits)	14 (default), range: 10–16
Refresh Rate (Hz)	3,840 (default)
Frame Rate (Hz)	60 (default), options: 50, 60
Color Temperature (K)	7,500 (default), range: 2,000–12,000
Color Gamut	N/A
Maximum Heat	374–471 BTU/hr (depending on pitch and panel size)
Humidity	10% – 80%, Non-condensing
IP Rating	IP41
Frame Material	Die-cast Aluminium
Hanging and Stacking	15 hanging max / 30 stacking max
Rear Bolt Threading	MS
Power Connectors	C13/C14
Data Connectors	RJ45
Service Access	Front
Warranty	3 years (up to 5 available)
Certifications	EMC-B, CCC, FCC, ETL, LVD, CE, RoHS, CB, PSE
Supported Controllers	Novastar, Brompton, 1G
Device Supported	dvLED Direct View
