URSA Mineral wool VENTO 34 PL

URSA Mineral wool VENTO 34 PL

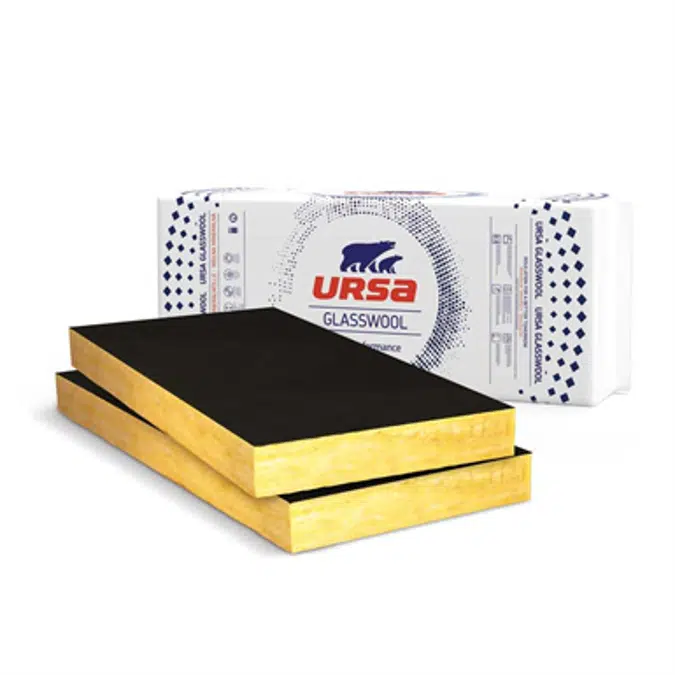

Thermal and acoustic insulation board, made of mineral wool, covered with one-sided reinforced black glass veil . The material is non-flammable, sound-absorbing, vapor-permeable, compressed, resistant to mold and fungi, hydrophobized, made of elastic fibers.

Specification

plate made by mineral glasswool URSA VENTO 34 for thermal and acoustic insulation;reaction to fire class (euroclass)A1; lambda 0,034[W/mK];thermal resistance R=1.45 [m2K/W] -thickness 50[mm]; thermal resistance R=1.75 [m2K/W] -thickness 60[mm]; thermal resistance R=2.35 [m2K/W] -thickness 80[mm]; thermal resistance R=2.90 [m2K/W] -thickness 100[mm]; thermal resistance R=3.50 [m2K/W] -thickness 120[mm]; thermal resistance R=4.10 [m2K/W] -thickness 140[mm]; thermal resistance R=4.40 [m2K/W] -thickness 150[mm];thermal resistance R=4.70 [m2K/W] -thickness 160[mm]; thermal resistance R=5.25 [m2K/W] -thickness 180[mm]; thermal resistance R=5.85 [m2K/W] -thickness 200[mm];

Technical specification

Unique ref.PL_MAT_GLW_UGW_VENTO_34_100_1
Product familyURSA GLASSWOOL
Product groupInsulation
TypeBuilding Material
Date of publishing2019-05-15
Edition number1
Height (mm)1000
Width (mm)1000
Depth (mm)100

Links

Product urlhttp://www.ursa.pl/pl-pl/produkty/ursa-glasswool/plyta-izolacyjna-ursa-vento-34/Strony/informacje.aspx
Installation instructionshttp://www.ursa.pl/pl-pl/produkty/Documents/Karty%20katalogowe/GLASSWOOL/Karta_Techniczna_URSA_VENTO_34.pdf
Instruction videohttp://www.ursa.pl/pl-pl/produkty/ursa-glasswool/plyta-izolacyjna-ursa-vento-34/strony/film-instruktazowy-fasady-wentylowane.aspx
Product certificationhttp://www.ursa.pl/pl-pl/produkty/ursa-glasswool/plyta-izolacyjna-ursa-vento-34/strony/dokumenty.aspx
Technical descriptionhttp://www.ursa.pl/pl-pl/produkty/Documents/Karty%20katalogowe/GLASSWOOL/Karta_Techniczna_URSA_VENTO_34.pdf

Related

Material mainMineral wool
Designed inPoland
Manufactured inPoland
Weight Net (Kg)2.6

Classification

BIMobject CategoryBuilding Materials - Insulation
IFC classificationMaterial
UNSPSC nameInsulation
UNSPSC code3014
Uniclass 2015 CodePr_25_57_06_53
Uniclass 2015 DescriptionMineral wool insulation
CSI MasterFormat 2014 Code07 21 00
CSI MasterFormat 2014 TitleThermal Insulation
OmniClass Number23-13 25 19 11 17
OmniClass TitleFiberglass Slab and Board Thermal Insulation

Region availability

Europe
Poland
