URSA XPS N V L BE

URSA XPS N V L BE

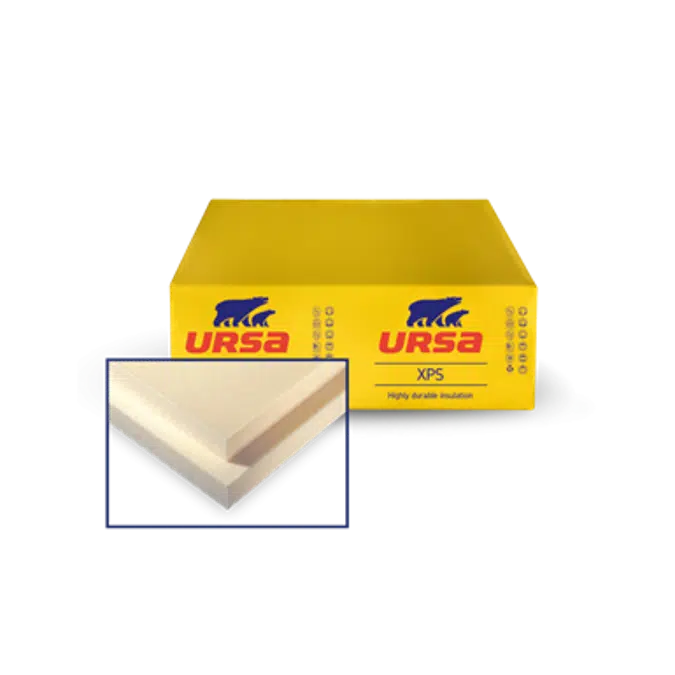

URSA XPS is an ideal product for technically challenging applications because it offers top performance with regard to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature.

Specification

Extruded polystyrene boards of 500 kPa of compression strength, shiplap edged, and thermal conductivity of 0,034 to 0,036 W/mK Suggested application: inverted roof, floors & perimeter insulation of basement retaining wall. The panel has the following characteristics: thickness 140 mm; length 1.250 mm; width 600 mm thermal resistance R=1.20 [m2K/W] -thickness 40[mm];thermal resistance R=1.50 [m2K/W] -thickness 50[mm];thermal resistance R=1.80 [m2K/W] -thickness 60[mm];thermal resistance R=2.20 [m2K/W] -thickness 80[mm];thermal resistance R=2.80 [m2K/W] -thickness 100[mm];thermal resistance R=3.60[m2K/W] -thickness 120[mm]; thermal resistance R=4.00[m2K/W] -thickness 140[mm]; thermal resistance R=4.60[m2K/W] -thickness 160[mm]; thermal resistance R=5.80[m2K/W] -thickness 200[mm];

Technical specification

Unique ref.BE_MAT_XPS_N_500_36_L_140_1
Product familyURSA XPS
Product groupInsulation
TypeBuilding Material
Date of publishing2019-10-30
Edition number1
Height (mm)1000
Width (mm)1000
Depth (mm)40

Links

Product urlhttps://www.ursa.be/nl/isolatieproducten/xps-n-v-l
Installation instructionshttps://www.ursa.be/nl/isolatieproducten/xps-n-v-l
Instruction videohttps://www.ursa.be/nl/isolatieproducten/xps-n-v-l
Product certificationhttps://www.ursa.be/nl/isolatieproducten/xps-n-v-l
Technical descriptionhttps://www.ursa.be/nl/isolatieproducten/xps-n-v-l

Related

Material mainExtruded polystyrene (XPS)
Designed inBelgium
Manufactured inFrance
Weight Net (Kg)5.6

Classification

BIMobject CategoryBuilding Materials - Insulation
IFC classificationMaterial
UNSPSC nameInsulation
UNSPSC code3014
Uniclass 2015 CodePr_25_71_63_29
Uniclass 2015 DescriptionExtruded polystyrene (XPS) boards
CSI MasterFormat 2014 Code07 21 00
CSI MasterFormat 2014 TitleThermal Insulation
OmniClass Number23-13 25 19 11 11 13
OmniClass TitleExtruded Polystyrene Slab and Board Thermal Insulation

Region availability

Europe
Belgium
