UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal
UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal

    UNILUX DesignLine Privacy - wood-alu window & balcony door tilt & turn, 1 leaf with 1 fixed glazing, horizontal

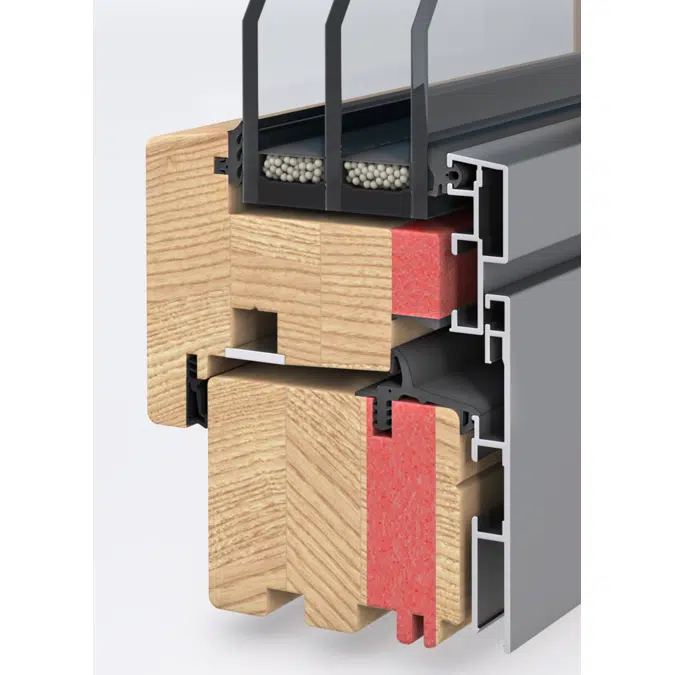

    An elegant way to reduce heating costs. The DesignLine wood-aluminum window range seamlessly blends sophisticated design with cutting-edge energy efficiency. Ideal for high-end residential properties and complexes, it offers top-tier aesthetics without compromising performance. For budget-conscious homeowners seeking to conserve heat. The DesignLine 0.8, featuring triple glazing and argon gas filling, provides outstanding value by delivering superior thermal insulation compared to standard double-pane windows. Exceptional thermal insulation. With a 46% improvement over typical windows, the DesignLine 0.7 achieves this through a combination of advanced insulating core technology, gas-filled triple glazing, insulated spacers, an invisible dual coating, and a total glass thickness of 48mm.

    Specification
    • DesignLine 0.8

      Building depth: 78 mm

      Glass thickness: up to 52 mm

      Uw: up to 0,77 W/m2K

      Ug: up to 0,5 W/m2K

      Burglary protection: up to class RC2

      Sound insulation: Up to 47 dB


      DesignLine 0.7

      Building depth: 78 mm

      Glass thickness: up to 52 mm

      Uw: up to 0,71 W/m2K

      Ug: up to 0,5 W/m2K

      Burglary protection: up to class Safe+++

      Sound insulation: Up to 47 dB

    Technical specification
    • Unique ref.unilux-designline-privacy-wood-alu-window-and-balcony-door-tilt-and-turn-1-leaf-with-1-fixed-glazing-horizontal
    • Product familyWood-ALU UNILUX
    • Product groupDesignLine Privacy
    • TypeObject (single object)
    • Date of publishing2026-01-13
    • Edition number1
    Related
    • Material mainWood
    • Material secondaryAluminium
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryWindows - Tilt and Turn Windows
    • IFC classificationWindow
    • CSI MasterFormat 2014 Code08 50 00
    • CSI MasterFormat 2014 TitleWindows
