Battery Pack for SV-Series 3-Phase UPS Matching Battery Cabinet
Battery Pack for SV-Series 3-Phase UPS Matching Battery Cabinet
    Tripp Lite by Eaton

    Battery Pack for SV-Series 3-Phase UPS Matching Battery Cabinet

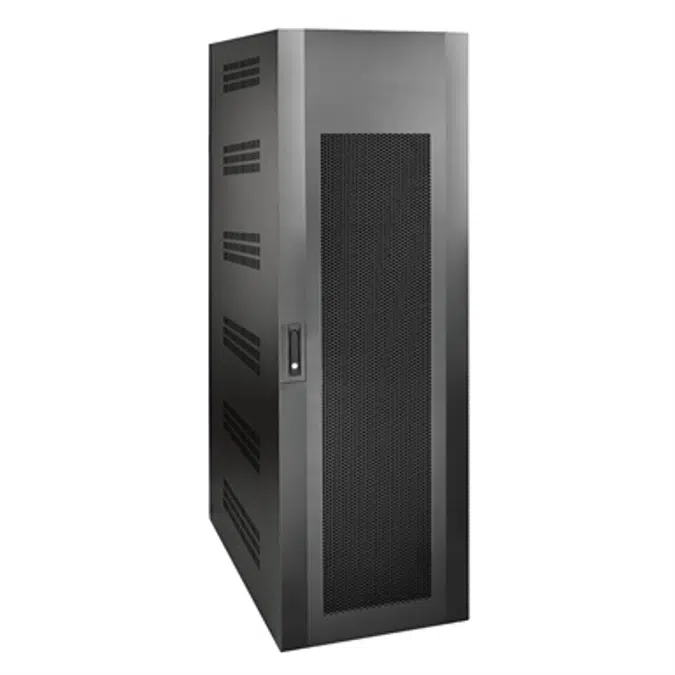

    Extend the Runtime of SV-Series UPS Systems Tripp Lite’s BP240V370 external backup battery pack extends runtime for SV-Series UPS systems. It consists of a battery cabinet and sealed lead acid batteries. Up to three external battery pack cabinets may be connected in parallel to increase runtime. Enjoy Compatibility with SV-Series UPS Systems The BP240V370 external UPS battery pack uses a +/- 120V DC configuration and must be hardwired to a compatible UPS. Circuit breakers provide overcurrent protection. The BP240V370 is compatible with Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140. Maintain a Uniform Look in Network Environments Made of powder-coated steel, the battery cabinet is designed to match the SV-Series UPS systems to keep a consistent look in your server room or data center. The cabinet door is lockable to control access to batteries. The top of the cabinet has conduit knockouts for user-supplied power output cables. Front and rear vents allow the free flow of warm air out of the cabinet, and appropriate spacing provides ventilation between individual batteries. Comply with TAA Requirements The BP240V370 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. One-Year Warranty The BP240V370 is backed by a one-year limited warranty, ensuring reliability and performance.
    Specification

    • Shipping Dimensions (hwd / in.) 11.12 x 8.12 x 15.50

      Unit Dimensions (hwd / in.) 78.94 x 25.47 x 43.3

      Unit Weight (lbs.) 3218

      Material of Construction Steel

      External Battery Pack Form Factor Tower

      Expandable Battery Runtime Multiple battery packs can be daisy-chained to the UPS for extended runtime

      DC System Voltage (VDC) +/- 120VDC

      UPS Connection Hardwire (contractor supplies wiring - see Owner's Manual for requirements and installation information)

      Expandable Runtime Yes

      Product Warranty Period (Worldwide) 1-year limited warranty

      KEYWORDS

      tripp lite pdu

      100kva ups

      server cabinet

      rack

      wall mounted light fixture

      ups

      smartrack

      smartrack low profile

      16u av rack

      cabinet

    Technical specification
    • Unique ref.BP240V370
    • Product familyUPS System
    • Product groupUPS System
    • TypeObject (single object)
    • Date of publishing2019-08-08
    • Edition number1
    • Height (inches)78.94
    • Width (inches)25.47
    • Depth (inches)43.3
    Links
    Related
    • Material mainSteel
    • Material secondarySteel
    • Designed inUnited States
    • Manufactured inUnited States
    • Weight Net (Lbs)3218
    Classification
    • BIMobject CategoryElectrical - Distribution
    • IFC classificationFurnishing Element
    • UNSPSC nameElectrical equipment and components and supplies
    • UNSPSC code3912
    • Uniclass 2015 CodeEn_70_30
    • Uniclass 2015 DescriptionElectricity distribution and transmission entities
    • CSI MasterFormat 2014 Code33 80 00
    • CSI MasterFormat 2014 TitleCommunications Utilities
    • OmniClass Number23-35 31 27
    • OmniClass TitlePower Distribution Units
    • CSI UniFormat II CodeD5010
    • CSI UniFormat II TitleElectrical Service and Distribution
