Diffuser

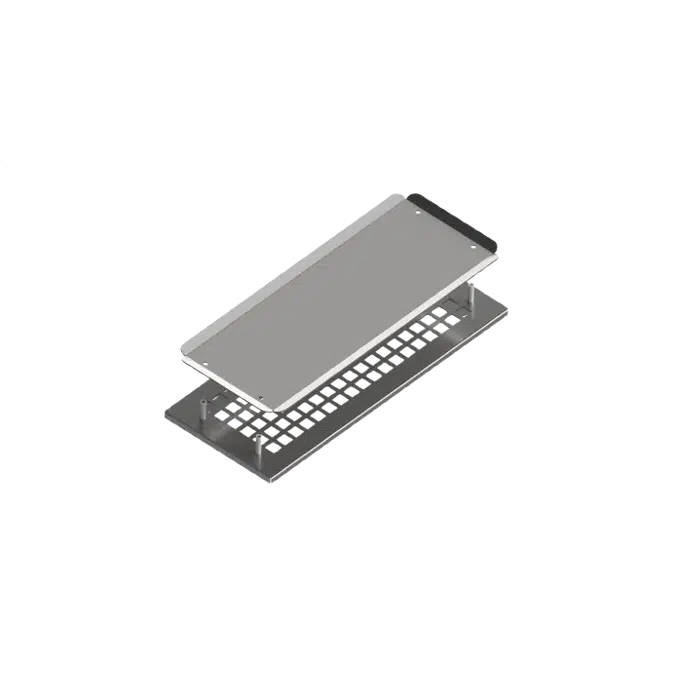

The Step Down Diffuser is an alternative to the Slab Grill used in Soffit Discharge exhaust applications. The sleek design not only finishes the termination of the duct but also redirects and softens the experience of air flow. This component is often used when terminating exhaust through balcony ceilings.

Features:

20-gauge aluminum construction
27 square inches of free area – screened
48 square inches of free area – unscreened
SMART Union made in North America
Certified to CAN/ULC S115 and ASTM R814 standard method of fire tests of firestop systems

Technical specification

Unique ref.Diffuser
Product familyHVAC Ductwork System
Product groupHVAC Ductwork Diffuser
TypeObject (single object)
Date of publishing2025-12-17
Edition number1

Links

Product urlhttps://highrisehvac.com/products-detail/diffuser/
Technical descriptionhttps://highrisehvac.com/wp-content/uploads/2025/06/diffuser-svg-1.pdf

Designed inCanada
Manufactured inCanada

Classification

BIMobject CategoryHVAC - Ductwork

Region availability

North America
