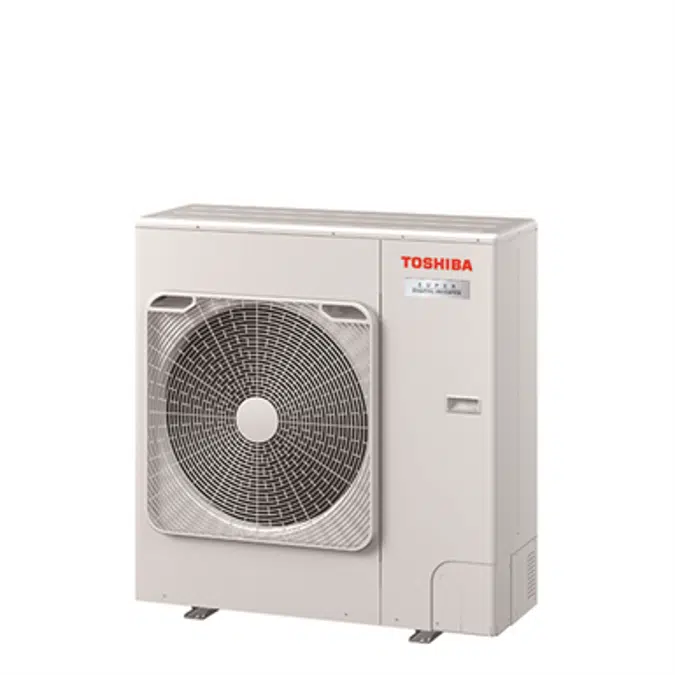

Super Digital Inverter R32 (outdoor unit - single phase) RAV-GP801AT-E

Super Digital Inverter R32 (outdoor unit - single phase) RAV-GP801AT-E

With its high energy efficency, Super Digital Inverter is the perfect outdoor unit for commercial applications (e.i. shop, restaurant…). Compressors could work at very low speed keeping great energy performance at low heat load. Super Digital Inverter operates with very large heating and cooling range. It's also avaible with a special coat protection to improve corrosion resistance.

Specification

Technical details:
- Avaible sizes: 56, 80, 110, 140 (from 3,6 to 12,5 kW) - 2HP, 3HP, 4HP and 5HP
- Cooling range to -15°C
- Heating range to -27°C
- Eco-driving Twin Rotary Compressor
- Max pipe length to 75 m
- With low GWP gas R32
System combination:
- Smart Cassette 4way 90x90 (56, 80, 110, 140)
- Compact cassette 4way 60x60 (56)
- Standard cassette 4way 90x90 (56, 80, 110, 140)
- Slim Duct (56)
- Standard Duct (56, 80, 110, 140)
- Hi-wall (56, 80, 110)
- Ceiling (56, 80, 110, 140)

Technical specification

Unique ref.SDI-R32-80
Product familyHVAC - Light Commercial
Product groupOutdoor unit
TypeObject (single object)
Date of publishing2019-11-12
Edition number1
Height (mm)1050
Width (mm)1010
Depth (mm)370

Links

Product urlhttps://www.toshibaclima.it/prodotti/light-commercial/unita-esterne/super-digital-inverter-r32
Installation instructionshttps://www.toshibaclima.it/prodotti/light-commercial/unita-esterne/super-digital-inverter-r32
Technical descriptionhttps://www.toshibaclima.it/prodotti/light-commercial/unita-esterne/super-digital-inverter-r32

Related

Weight Net (Kg)74

Classification

BIMobject CategoryHVAC - Air Conditioning
IFC classificationAir Terminal
UNSPSC nameAir conditioners
UNSPSC code40101701
Uniclass 2015 CodeEF_65_80
Uniclass 2015 DescriptionAir conditioning
OmniClass Number23-33 39 00
OmniClass TitleAir Conditioning Equipment
CSI UniFormat II CodeD30
CSI UniFormat II TitleHVAC

Region availability

Europe
Italy
