peak traffic: victoria [ASME, US standard] 27.3°

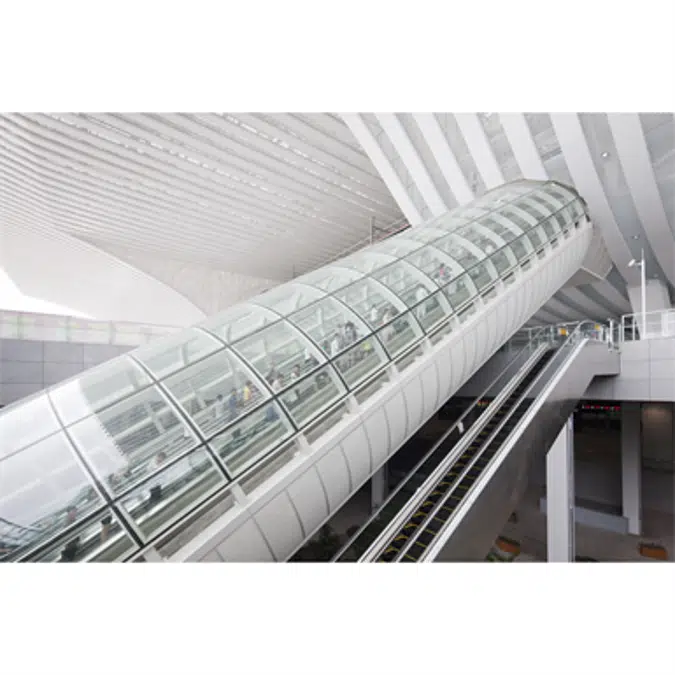

The escalator for extended travel and high-traffic areas.

victoria stands for high performance, steps ahead of the rest. Thanks to a unique technology, this escalator bridges conveyance heights of up to 246' (75m) and meets the highest standards in all environments – indoors and out. As the market leader in traffic installations, victoria also features an innovative safety concept, optimum ride comfort and economical energy-saving systems running up to 24h/day. Individual weather packages guarantee trouble-free operation and ensure lasting value, for instance with standard profiles and bases made of stainless steel, or the use of a direct handrail.

Specification

BASIC PRODUCT SPECS
Step width: 32" (800mm) | 40" (1,000mm)
Inclination: 27.3° ( 30.0° )
Rise max: 82' (25m) (up to 246'(75m) with project specific solutions).
Rise min: 6,56* (2.5m)
Flat steps: 2, 3 or 4 as standard.
Max Rise w/o intermediate support: 19,69' (6.0m) @ 30° and 2 horizontal steps | 20,01' (6.10m) @ 30°, 32" (800mm) step width and 3 horizontal steps | 18,04' (5.50m) @ 30°, 40" (1000mm) step width and 3 horizontal steps

BASIC DESIGN OPTIONS
Balustrades: Metal | Robust (Glass)
Handrail Colours: Black|Dark grey |Grey | Blue |Red| Brown|Beige|Green|Other colours on request.
BIM Lighting Options: Comb plate | Under handrail | Skirt band
ADD Lighting Options: Soffit | Truss | Multiple traffics light designs
Claddings: Standard options stainless steel: AISI 443/1.4521| AISI 441/1.4509 |AISI 304/1.4301|AISI 316/1.4404 . Powder Coated: RAL Range. Prime painted: RAL range | Customer specific solutions are available
ENERGY SAVING OPTIONS
Star Delta | Smart Frequency Converter | Stop&Go
