3130N-3135N _Self cleaning filters with threaded male /male and tangs
3130N-3135N _Self cleaning filters with threaded male /male and tangs
3130N-3135N _Self cleaning filters with threaded male /male and tangs
    TIEMME

    3130N-3135N _Self cleaning filters with threaded male /male and tangs

    4.6 out of 5 stars4.6(14 reviews)

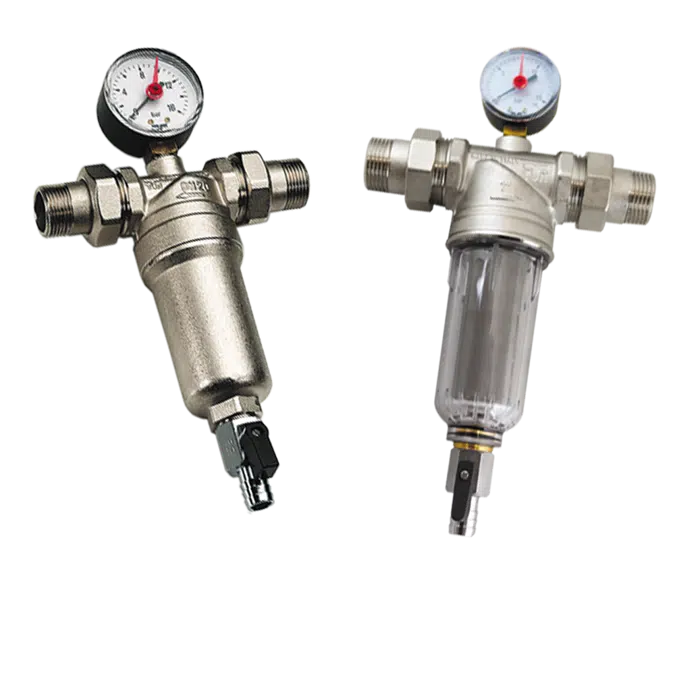

    Self cleaning filters with brass cup and threaded ends male/male UNI ISO 228. Available with or without tail male UNI ISO 228.

    The filter is to be installed at the domestic net input, after the meter and before the eventual pressure reducer, as to protect the whole installation against the impurities carried by water which, could damaged the installed accessories durig the time.

    The self cleaning filter shall be installed in orizontal position provided that shall be placed in visible and accessible location and the maintenance operations shall be easily done.

    The filter flow direction is always specified by marks on the valve body (arrows).

    Available in a wide range of sizes from G1/2" to G1"1/4.

    Aviable products:
    Art.3135N - with a transparent polycarbonate cup
    Art.3131N - without tangs and connection Female/Male
    Art.3136N - without tangs and connection Female/Male and with a transparent polycarbonate cup




    Specification

    • Self Cleaning made up:
            Body: brass CW617N Nickel plated
            Cup: brass CW617N Nickel plated
            Filtering cartridge: inox AISI 304
            Threads: Male ISO228

      Maximum working temperature : 95°C
      Maximum working pressure : working limits at 25 bar

      Production range: from G1/2" to G1"1/4.

    Technical specification
    • Unique ref.3130N-3135N_Self-cleaning-filters_Filtri-autopulenti
    • Product familyPLUMBING and HEATING SYSTEMS COMPONENTS
    • Product groupFILTER
    • TypeObject (single object)
    • Date of publishing2020-09-28
    • Edition number1
    Links
    Related
    • Material mainBrass
    • Designed inItaly
    • Manufactured inItaly
    Classification
    • BIMobject CategoryHVAC - Other
    • IFC classificationValve
    • ETIM CodeEC010357
    • ETIM NameSelf-cleaning filter
    • UNSPSC nameValves
    • UNSPSC code401416
    • Uniclass 2015 CodePr_65_57_95_96
    • Uniclass 2015 DescriptionWater strainers
    • OmniClass Number23-27 31 00
    • OmniClass TitleValves
    • CSI UniFormat II CodeD30
    • CSI UniFormat II TitleHVAC
