2200G-2220G-2240G _ URAGANO Full bore ball valves for GAS female/female

TIEMME

2200G-2220G-2240G _ URAGANO Full bore ball valves for GAS female/female

Name: 2200G-2220G-2240G _ URAGANO Full bore ball valves for GAS female/female
Rating: 4.3 (6 reviews)

4.3(6 reviews)

The gas valve is produced to be used in gas distribution networks.

Full bore ball valves with threaded connection Male/Female UNI ISO 7.
Available with steel flat handle, T handle or yellow cap

Wide range available, for any installation and connection from G1/4" (DN8) to G4" (DN100).

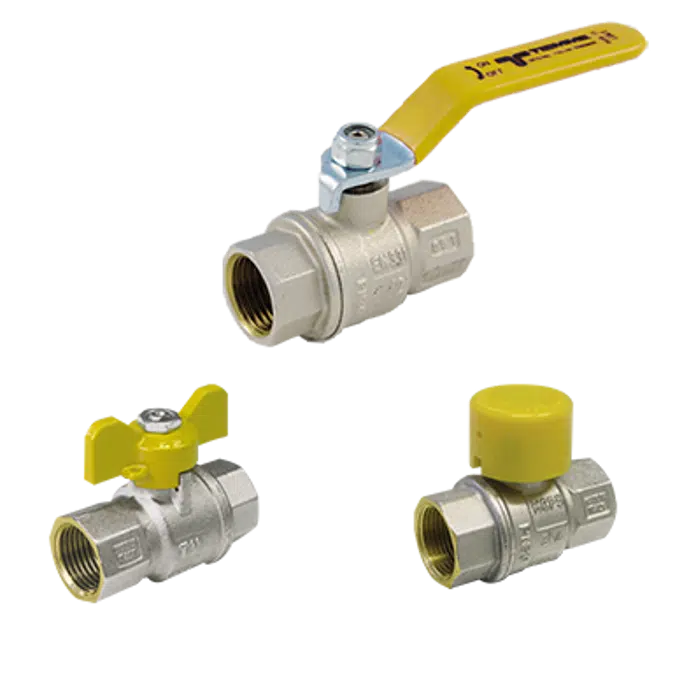

Available in the following versions:
Art. 2200G - Flat yellow handle
Art. 2220G - T yellow handle
Art. 2240G - Yellow cap

Production range:
Art. 2201G – 2221G – 2241G Full bore ball valve for gas with male/female thread

Related products:
Art. 0600G Pe-X pipe with Aluminium coil for gas
Art. 0640G Pe-X pipe with Aluminium coil for gas with corrugated sheath
Art. 2650 Press fitting /Male for multi-layer pipe
Art. 2652 Press fitting /Female for multi-layer pipe
Art. 2654 Elbow press fitting /Male for multi-layer
Art. 2658 "T" press fitting male for multi-layer

Specification

Art. 2200G
Full bore ball valves for gas with threaded connection female/female
Production range from G1/4" (DN8) to G4" (DN100).
Body: brass CW617N nickel plated
Handle: Yellow flat handle
Maximum working temperature: 60°C
Minimum working temperature: - 20°C
Maximum working pressure: 0 - 5 bar (MOP 5)
Thread: Female/Female UNI ISO 7

Art. 2220G
Full bore ball valves for gas with threaded connection female/female
Production range from G1/4" (DN8) to G1" (DN25).
Body: brass CW617N nickel plated
Handle: Yellow T handle
Maximum working temperature: 60°C
Minimum working temperature: - 20°C
Maximum working pressure: 0 - 5 bar (MOP 5)
Thread: Female/Female UNI ISO 7

Art. 2240G
Full bore ball valves for gas with threaded connection female/female
Production range from G1/2" (DN15) to G2" (DN50).
Body: brass CW617N nickel plated
Handle: Yellow cap
Maximum working temperature: 60°C
Minimum working temperature: - 20°C
Maximum working pressure: 0 - 5 bar (MOP 5)
Thread: Female/Female UNI ISO 7

Technical specification

Unique ref.2200G-2220G-2240G_Ball-valve-gas_Valvola-sfera-gas
Product familyVALVES AND TAPS
Product groupVALVES FOR GAS
TypeObject (single object)
Date of publishing2020-09-28
Edition number1

Links

Product urlhttps://product.tiemme.com/valve2200G
Product certificationhttps://product.tiemme.com/valve2200G
Technical descriptionhttps://product.tiemme.com/valve2200G

Material mainBrass
Material secondaryAluminium
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryPlumbing - Valves
IFC classificationValve
ETIM CodeEC011015
ETIM NameGas valve
UNSPSC nameBall valves
UNSPSC code40141607
Uniclass 2015 CodePr_65_54_95_06
Uniclass 2015 DescriptionBall valves
CSI MasterFormat 2014 Code40 05 63.33
CSI MasterFormat 2014 TitleMetallic Ball Valves
OmniClass Number23-27 31 15
OmniClass TitleBall Valves
CSI UniFormat II CodeD30
CSI UniFormat II TitleHVAC
