1883-1884-1885 _ G3/4", G1" e G1"1/4 manifold LINEARE with connections G3/4"x18 Euroconus

Distrinbution manifolds (LINEARI) are generally employed in hot and cold water distribution networks. Thanks to their configuration they allow for the parallel supply of utilities for hot and/or cold water, reducing load losses to a minimum. The manifolds are manufactured in conformity to the pertinent norms and are certified in regards to the chemical composition of the used materials and on a dimensional level.

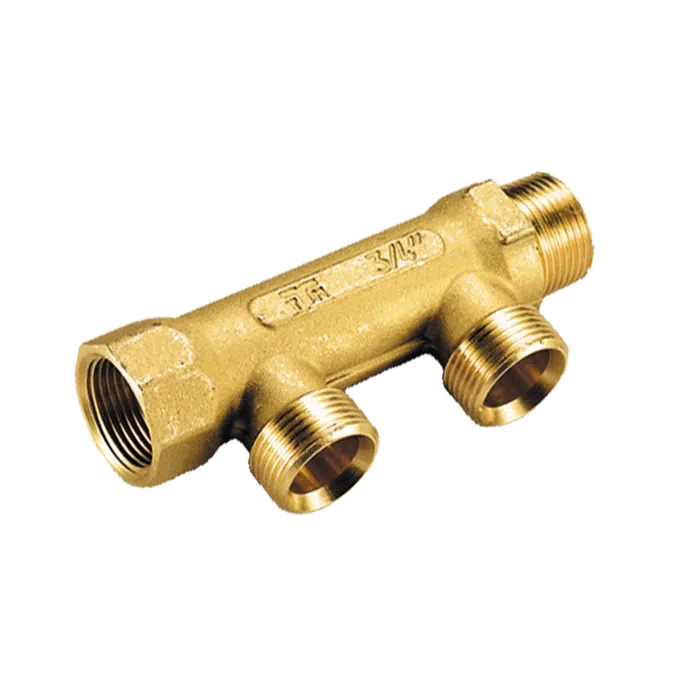

Modular manifold in brass with axial distance 50mm

Wide range available, for any installation requirement from 2÷4 ways
Size G3/4" (DN20) or G1" 1/4 (DN32)
Connections G3/4"x18

Also available in the following versions:
Art.1883 size G3/4" (DN20)
Art.1884 size G1" (DN25)
Art.1885 size G1" 1/4 (DN32)

Production range:
Art.1912 - 1922 connections G1/2"x16 and axial distance 36mm

Related products:
Art.0200 High density Pe-X pipe with anti-oxygen barrier (EVOH)
Art.1716 Press fitting for Pe-X pipe with connections G1/2"x16 and G3/4”x18 (Euroconus)
Art.1436 Compression fitting for Pe-X pipe with connections G3/4"x18

Art.0600 Pe-X pipe with Aluminium coil
Art.1666 Press fitting for multi-layer pipes with connections G1/2”x16 (Euroconus)
Art.1636 Compression fitting with multi-layer pipe with connections G3/4”x18 (Euroconus)

Art.1812 Universal box
Art.1939 Box adjustable in height and width
