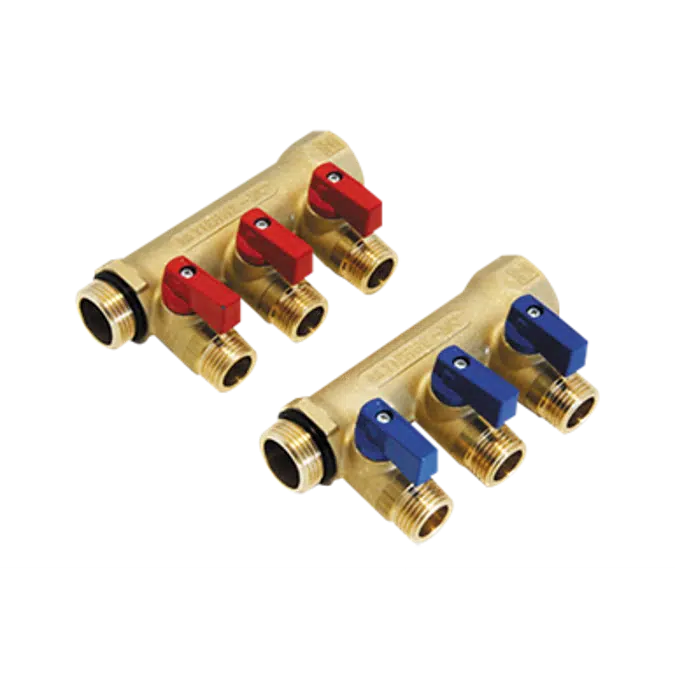

1822RCP - 1832RCP _ G3/4" or G1" NINO Manifold with ball valve and phased thread with sealing gasket, connections G1/2"

Distribution manifolds (NINO) are generally used in distribution networks for hot and cold water.
Thanks to their configuration they allow the parallel supply of utilities for hot water and/or cold water, thereby reducing load losses to a minimum. The manifolds are produced in conformity with the relative regulations and are certified for their chemical composition of the used materials and on a dimensional level.

Modular manifold in brass with ball valve with T-handle red/blue

Wide range available, for any installation requirement from 2÷4 ways
Size G3/4" (DN20) or G1" (DN25) with phased thread and sealing gasket
Connections of G1/2” flat seat

Also available in the following versions:
Art.1822RCP size G3/4" (DN20)^**
Art.1832RCP size G1" (DN25)^{**
**also available in nickel plated version}

Production range:
Art.1822-1832 with connections G1/2”x16
Art.1822SH with connections G1/2”x15
Art.1842 with connections for Pe-X pipe 16mm

Related products:
Art.0200 High density Pe-X pipe with anti-oxygen barrier (EVOH)
Art.1715 Press fitting for Pe-X pipe with connections G1/2"x16
Art.1249CZ Compression fitting for Pe-X pipe with connections G1/2"x16

Art.0600 Pe-X pipe with Aluminium coil
Art.1665 Press fitting for multi-layer pipes with connections G1/2"x16
Art.1248CZ Compression fitting for multi-layer pipes with connections G1/2"x16

Art.1812 Universal box
Art.1939 Box adjustable in height and width
