TB-10 TECH Manoir Roof Tile

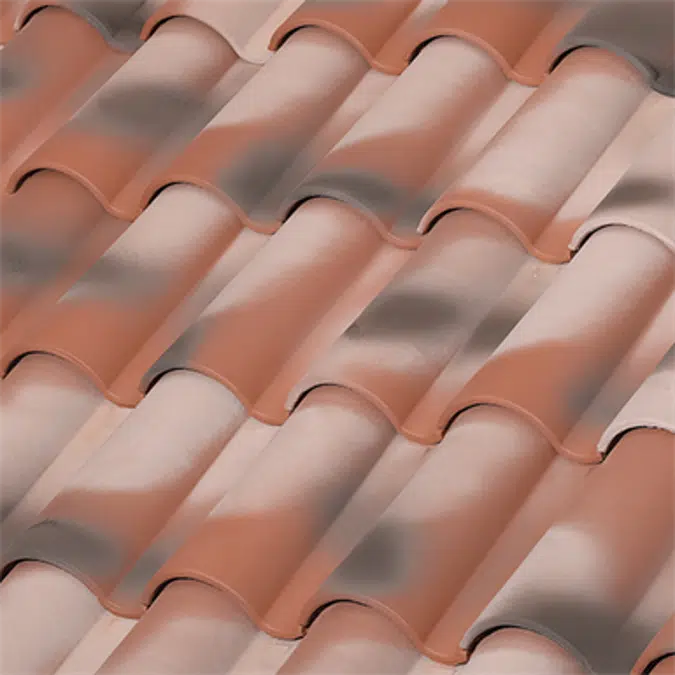

The TB-10 TECH roof tiles is the technological evolution in the large size S-interlocking tile format. We have made improvements in the manufacturing and development process to give the roof tile even greater definition and make it completely watertight. Ideal for architectural projects anywhere in the world. Manufactured using plaster moulds and H-cassette production, we obtain a product with detail definition, more compact clay and very low absorption (< Klinker) and extremely strong. TB-10 TECH complies with mountain climate. It stands out by its design the barrel/curved roof tile aesthetic. It has double lateral overlapping and double longitudinal overlapping, for higher level of tightness, being a reliable product at low slope (Moby Dick II tested – CTMNC -Paris). Designed to stands out for its red backgrounds with cream and black smoke applications, Manoir is creating a cover effect that exceeds the expectations of the aged red roofs.

Specification

The TB-10 TECH roofing tile is a large S-Interlocking clay roof tile (10 units/sq.m), very light and strong. It adapts to various batten spacings. TB-10 TECH is a BorjaTECH product, certified by Aenor, Afnor and complies to mountain climate. The S-Interlocking TB-10 TECH roof tiles has obtained the important French Certification AVIS TECHNIQUE CSTB. Characteristics of the TB-10 TECH roof tile per unit: • Length: 475 mm • Width: 282 mm • Weight: 3.45 kg/ roof tiles • Units per sq.m.: 10,4 roof tiles • Batten distance - VARIABLE: 390 - 410 mm • Units per eave line: 4,25 – 4,54 roof tiles • Minimum slope recommended: 30% - 17º (*) • Useful width: 235 - 220 mm • Pack: 5 roof tiles Tejas Borja recommends dry installation for TB-10 TECH roof tile, using screws or special roofing adhesive. TB-10 TECH roof tile has pre-marked holes specially designed for screw installation. If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024. To ensure the good performance of the roof, the under-tile ventilation is always necessary. This will guarantee the durability of the TB-10 TECH roof tiles used to build up the roof with their optimal characteristics, improving the hygrothermal performance of the roof against the moisture resulting from condensation. Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications. (*) Check pitch panel according to the roof length and the geographical area.
