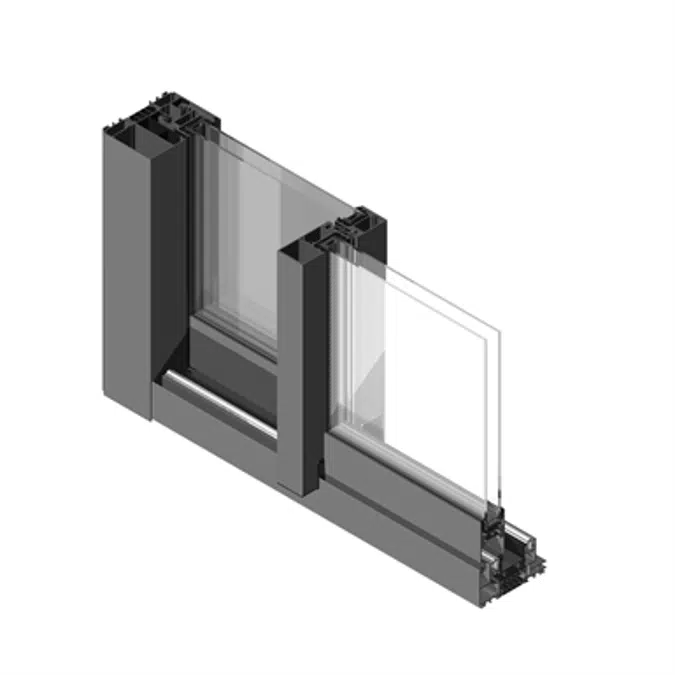

Luméal GA (W)

Concealed opening. Large dimensions - Maximum sizes up to W: 4 ,50 m - H: 2 ,70 m - Maximum weight per leaf: 300 kg with triple stainless steel rollers Thermal performances - Up to Uw = 1,2 W/m².K, Sw = 0,45 and TLw = 0,64 Double glazing with Ug = 1,0 W/m2.K + Insulation spacer with dimensions W: 4,50 m - H: 2,70 m. Design - Lighter aluminium weight (-35%) with only 68mm and 77mm of visible aluminium - Slim central meeting stile - Concealed drainage for all applications Accessibility and comfort - Device adapted for easy access. - Flat threshold fitted into the floor or access ramp profile have been developed to improve user’s comfort - Motorized option to make easier opening/closing of large dimensions and heavy frames Locking mechanisms - Several handle options with a refined design, non-locking or 2-point and 3-point locking.

Technical specification

Unique ref.TEC-LU-GA-W
Product familyWindows & Doors
Product groupWindows
TypeObject (single object)
Date of publishing2016-06-14
Edition number1

Links

Product urlhttps://www.technal.com/en-int/professionals/products/sliding-systems/lumeal
Instruction videohttps://www.youtube.com/watch?v=-1REZ79J3S8

Material mainAluminium
Material secondaryGlass
Designed inFrance
Manufactured inFrance

Classification

BIMobject CategoryWindows - Single Hung Windows
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
