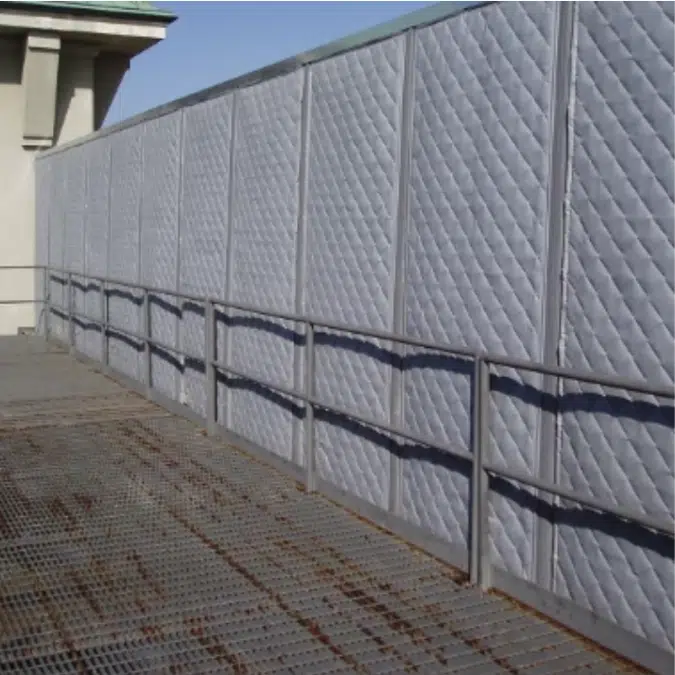

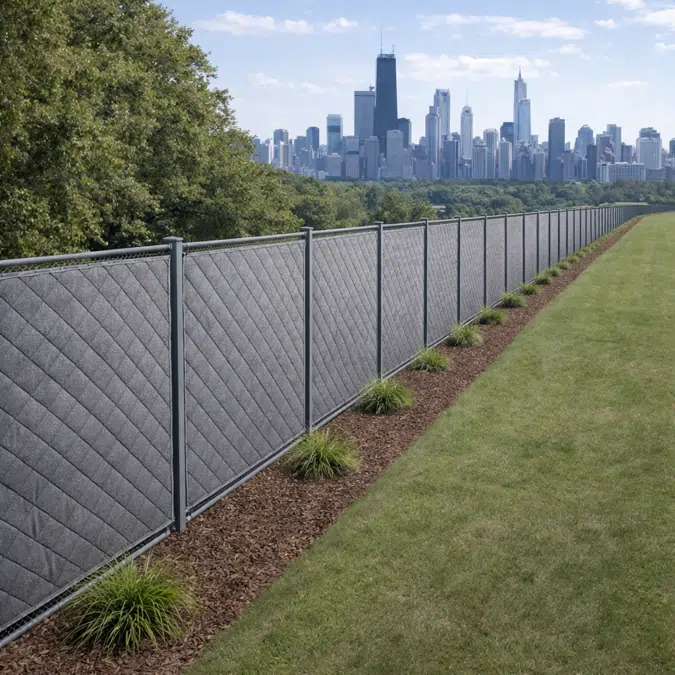

OUTDOOR NOISE CONTROL CURTAIN – STC 32 INDUSTRIAL SOUND BARRIER | SCC-13 EXT
Steel Guard Safety SCC-13 EXT Outdoor Noise Control Curtains provide high-performance acoustic containment for exterior industrial equipment and machinery. Designed for permanent outdoor installation, SCC-13 EXT uses a thicker acoustic absorption assembly combined with mass loaded vinyl sound barrier backing to deliver increased sound transmission reduction.
This system is recommended for facilities requiring stronger exterior noise mitigation around generators, compressors, and outdoor mechanical equipment.
BIM OBJECT DOWNLOAD INCLUDES
Revit acoustic curtain family IFC coordination model 2D CAD drawing files Technical acoustic specifications
PRODUCT SPECIFICATIONS
Product Type Outdoor Noise Control Curtain
System Type Exterior Acoustic Curtain System
Primary Function Outdoor Sound Barrier and Noise Containment
Construction Acoustic absorption core with weather-resistant mass loaded vinyl backing
Curtain Thickness 2 inch acoustic assembly
Performance Rating STC 32 sound transmission reduction
Acoustic Performance NRC 0.85 sound absorption
Installation Options Outdoor track mounted curtain systems Suspended exterior acoustic panels Equipment enclosure curtain systems
Typical Applications Outdoor equipment enclosures Generator sound barriers Mechanical yard sound control Industrial compressor noise containment Exterior machinery sound barriers
Building Type Industrial facilities Manufacturing plants Utility infrastructure
Model SCC-13 EXT
BIM Formats Available Revit (RFA) IFC 2D CAD (DWG)
OUTDOOR NOISE CONTROL CURTAIN PERFORMANCE
SCC-13 EXT combines sound absorption and sound barrier mass to control high-intensity exterior equipment noise. The thicker acoustic assembly increases sound transmission reduction while maintaining strong sound absorption performance.
With STC 32 sound transmission reduction and NRC 0.85 sound absorption, SCC-13 EXT provides enhanced outdoor industrial noise containment.
