Insulated Curtain Wall System BIM Object | Industrial Thermal Partition Wall

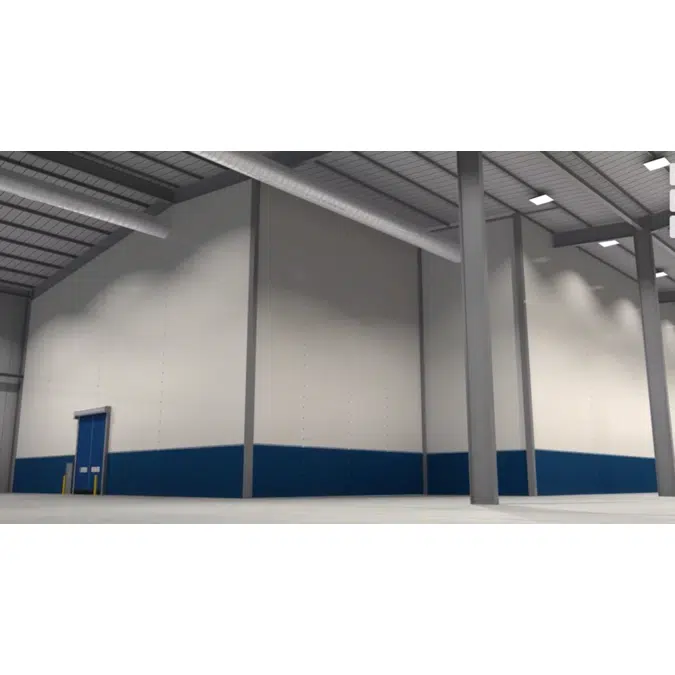

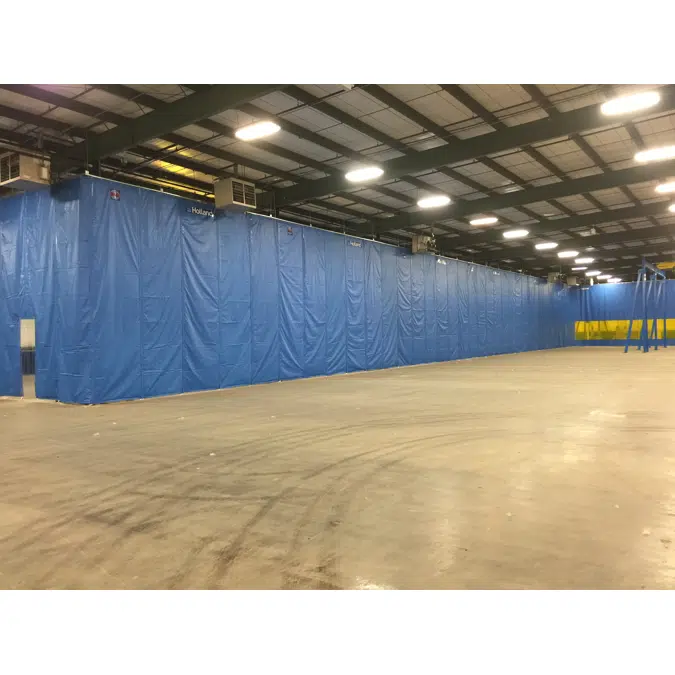

The Insulated Partition Wall System by Steel Guard Safety provides a durable and energy-efficient way to divide interior spaces within warehouses, manufacturing plants, and distribution centers. Unlike traditional exterior curtain walls, this system is specifically engineered for interior applications, helping create controlled environments, improve workflow separation, and enhance energy performance.

Designed with curtain wall-style framing, this system offers the structural and modular benefits of a curtain wall while functioning as an industrial partition wall system. It allows for quick installation, easy reconfiguration, and long-term flexibility, making it a cost-effective alternative to permanent construction.

This insulated partition wall system acts as a thermal barrier, reducing heat transfer between spaces and supporting energy efficiency goals. It is ideal for facilities requiring temperature separation, dust control, or operational zoning.

From a BIM perspective, this partition wall BIM object is optimized for seamless integration into Revit workflows. The model includes parametric capabilities, allowing users to adjust dimensions and layouts to match project requirements. It supports accurate visualization, coordination, and documentation throughout the design and construction process.

Key Benefits

• High-performance insulated partition wall system
• Interior industrial application, not exterior facade curtain wall
• Curtain wall-style modular framing system
• Revit-ready BIM object for design integration
• Improves energy efficiency and thermal separation
• Fast installation compared to traditional construction
• Flexible and reconfigurable for evolving facility needs
• BIM / Technical Features
• Parametric partition wall system
• Adjustable height and width
• Configurable panel layouts
• Material definitions for insulated panels
• Optimized for Revit RFA workflows
• Suitable for LOD 200 to 300 applications
