Industrial Noise Control Curtain – 2" Double-Faced STC 29 System | SCC-10

Industrial Noise Control Curtain – 2" Double-Faced STC 29 System | SCC-10

The SCC-10 Industrial Noise Control Curtain is a permanent 2-inch thick, double-faced acoustic barrier system engineered for high-performance industrial sound attenuation. Designed for manufacturing facilities, mechanical rooms, and equipment enclosures, this industrial noise control curtain delivers STC 29 sound transmission reduction for demanding indoor environments.

Product Specifications

• Thickness: 2-inch acoustic assembly
• STC Rating: Up to STC 29 (assembly dependent)
• Construction: Double-faced acoustic curtain system
• Core Material: Mass Loaded Vinyl (MLV) barrier
• Absorption Layer: Dual fiberglass acoustic absorption
• Installation Options: Track-mounted, suspended, or enclosure frame
• Application Type: Permanent industrial indoor installation
• Primary Markets: Manufacturing, industrial facilities, mechanical rooms
• BIM Formats: Revit (.RFA), IFC, 2D CAD (.DWG)

Industrial Noise Control Curtain Performance – STC 29 Rated

SCC-10 provides an STC rating of 29 when installed as part of an appropriate assembly. The 2-inch thick double-faced construction combines sound blocking and sound absorption in a single industrial noise control curtain system designed for demanding interior environments.

Permanent Industrial Noise Control Curtain Applications

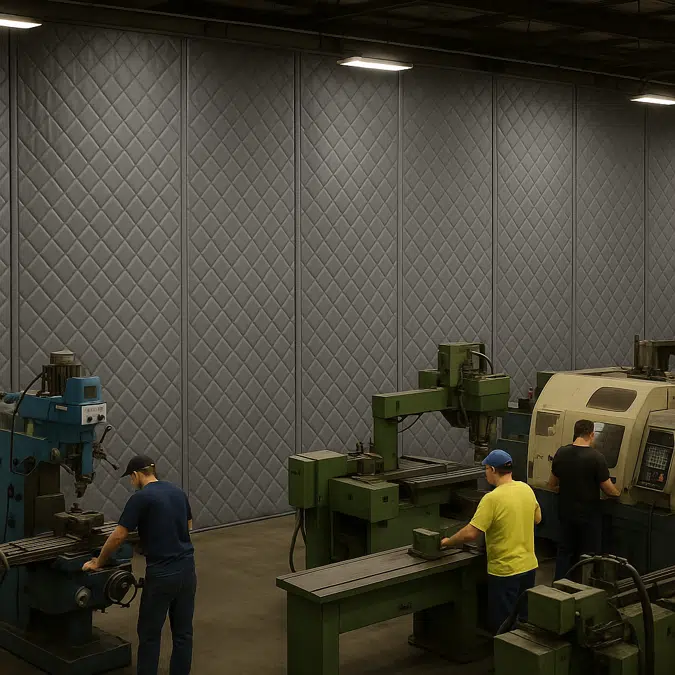

SCC-10 industrial noise control curtains are specified for manufacturing equipment isolation, mechanical room containment, compressor enclosures, generator isolation, pump rooms, and factory floor noise zoning. Designed for permanent installation, the system provides consistent long-term industrial sound mitigation.

Mechanical Room & Equipment Enclosure Sound Curtain Solutions

In mechanical environments, SCC-10 functions as a flexible industrial sound barrier capable of surrounding high-noise equipment without rigid wall construction. Typical applications include HVAC isolation, chiller enclosures, boiler room containment, and electrical room partitioning.

2-Inch Double-Faced Industrial Sound Barrier Construction

The SCC-10 acoustic curtain incorporates a mass loaded vinyl core, dual absorption layers, and reinforced vinyl faces on both sides. This double-faced industrial noise control curtain design ensures balanced acoustic performance and improved reverberation control in open industrial environments.

Track-Mounted & Suspended Industrial Curtain Installation

SCC-10 can be installed using ceiling-mounted track systems, suspended cable systems, structural mounting frames, or free-standing enclosure assemblies. Although installation is flexible, the system is engineered for permanent industrial indoor use.

BIM-Ready Industrial Noise Control Curtain Models

SCC-10 is available as a BIM-ready industrial noise control curtain model for coordination and specification. Revit models support parametric sizing and enclosure representation suitable for LOD 300 development within industrial facility layouts.
