Closet Flange Firestop Gasket

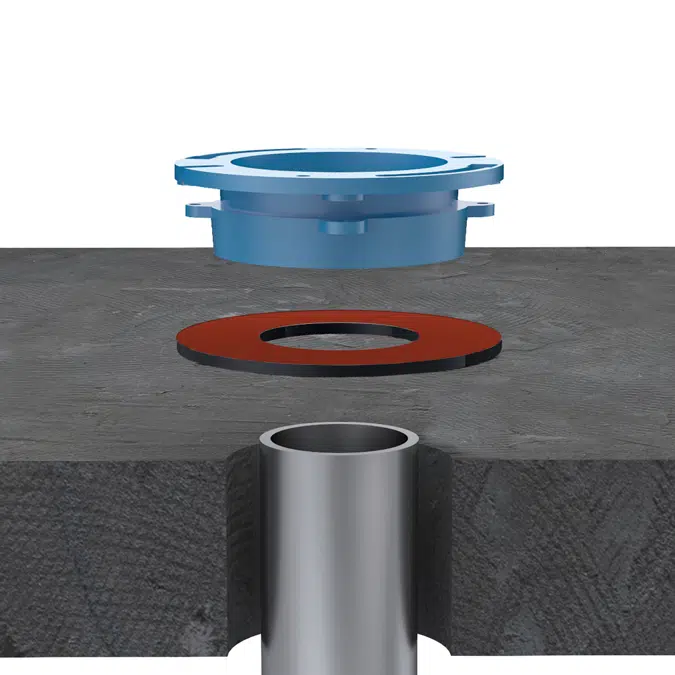

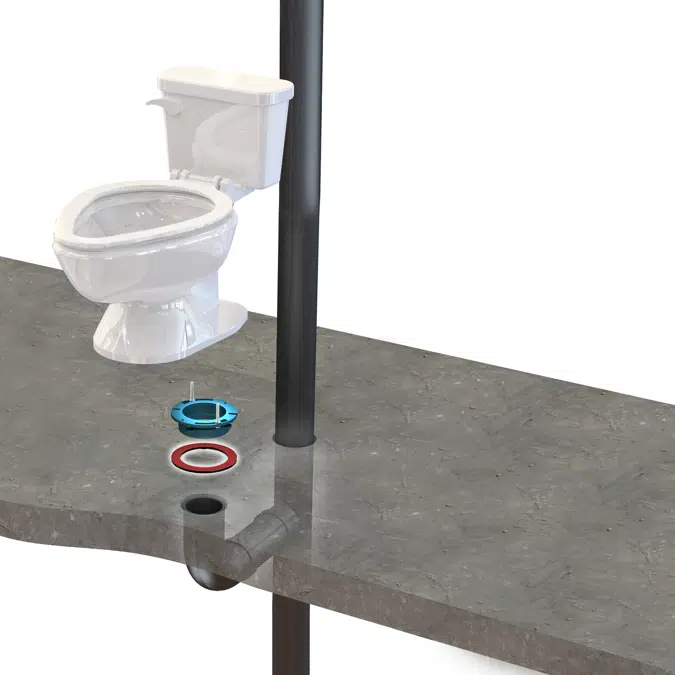

SpecSeal Closet Flange Firestop Gaskets are one-piece, molded rubber, intumescent pads that install beneath a 3" (76 mm) or 4" (102 mm) closet flange to effectively firestop the opening. The die cut rubber gasket is perforated to delineate removable inserts sized to accommodate various outer diameters of toilet flanges. Traditional firestopping methods require the firestop material to be applied around the pipe prior to setting the toilet flange, which can be problematic if the firestop material is not recessed a sufficient distance from the top to accommodate the throat of the flange. The alternative is to apply the firestopping from the underside of the floor, necessitating the use of ladders or lifts. SpecSeal Closet Flange Firestop Gaskets solve the problem by providing a labor-friendly method of properly firestopping the opening.

Specification

The firestop system for the toilet flange shall be a molded, one-piece intumescent gasket with removable inserts to accommodate various outer diameters of toilet flanges certified by Underwriters Laboratories Inc. (UL) as a fill, void, or cavity material when tested to ASTM E814 (ANSI/UL1479) or CAN/ULC-S115 for up to a 2 hr. rating.

Technical specification

Unique ref.sti-cf34
Product familyFirestopping
Product groupSpecSeal®
TypeObject (single object)
Date of publishing2017-08-21
Edition number1

Links

Product urlhttps://www.stifirestop.com/products/specseal-closet-flange-firestop-gasket#
Technical descriptionhttps://cdn.bfldr.com/97UPJRLN/as/vp23scrmm3mbph4cttxwxxv7/PDS_CF_Closet_Flange_Gasket_English

Material mainPE/PP
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryFire Products - Fire Stops
UNSPSC nameFire protection
UNSPSC code4619
