Firehouse Sample Project

Engine Bay Design: Large fire engine garage with adjacent workshop and storage rooms for operational readiness.

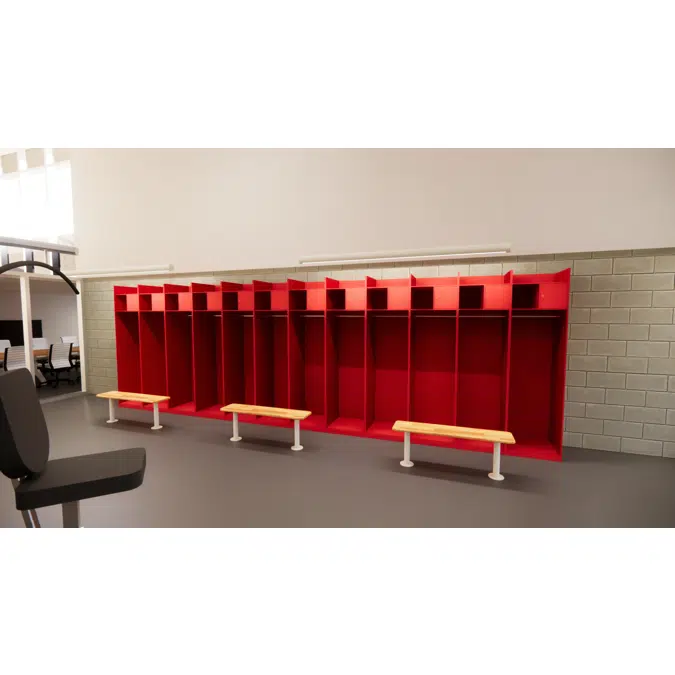

Rapid Response Readiness: Fast-access turnout lockers placed near apparatus bays for reduced response times.

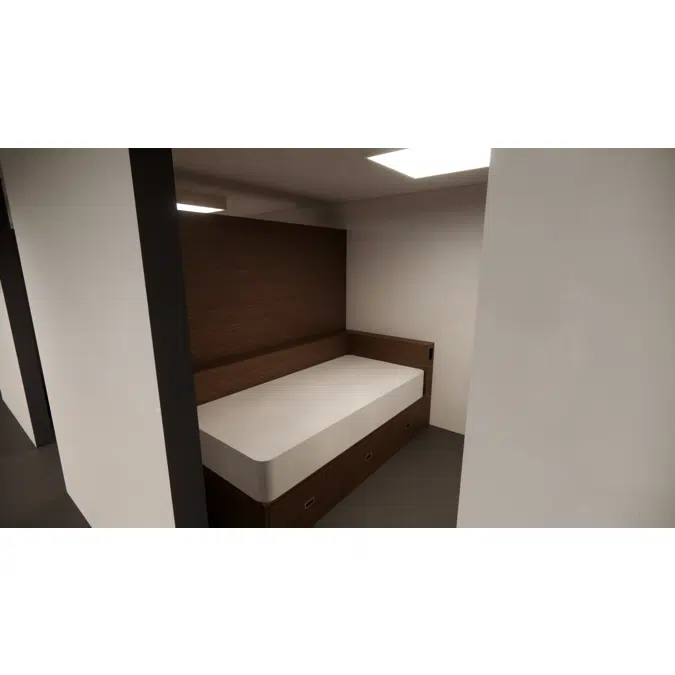

Living Quarters: Dormitory rooms with custom firefighter beds, lockers, and storage tailored to three-shift schedules.
BIM-Optimized Assets: Includes Revit families for casework, furniture, lockers, and firehouse-specific features.

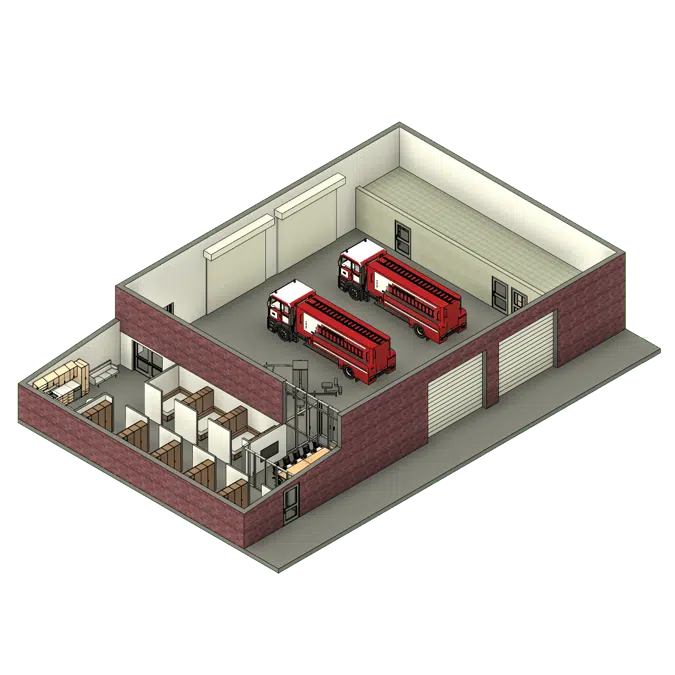

The layout is centered around a fire engine garage sized to house multiple apparatus bays, with adjacent storage rooms and a workshop for tools, gear, and maintenance needs.To support firefighters’ readiness, the model includes fast-access turnout lockers strategically placed near the garage, enabling rapid response times. The living quarters feature dormitory-style sleeping rooms outfitted with custom beds, lockers, and storage accessories that accommodate a three-shift operational structure. Shared spaces such as a kitchen, break room, and conference room are integrated to provide areas for meals, downtime, and departmental coordination.This BIM-ready firehouse template provides architects and designers with accurate Revit families for casework, lockers, furniture, and specialty equipment. It serves as a practical starting point for planning municipal fire stations, volunteer firehouses, or regional response hubs where efficiency, safety, and comfort are equally prioritized.

Specification

General Information
- Room type: Firehouse / Fire Station
- Approximate Area: ~10,000 - 12,000 sq. ft.
- Occupancy: 15-25 firefighters (3-shift structure)
- Layout Zones: Fire engine garage, turnout lockers, dormitories, kitchen & break room, conference room, workshop, storage rooms
- Storage Features: Custom lockers, turnout gear storage, integrated cabinetry
- Typical Use: Fire and rescue operation, training, equipment maintenance, staff housing
