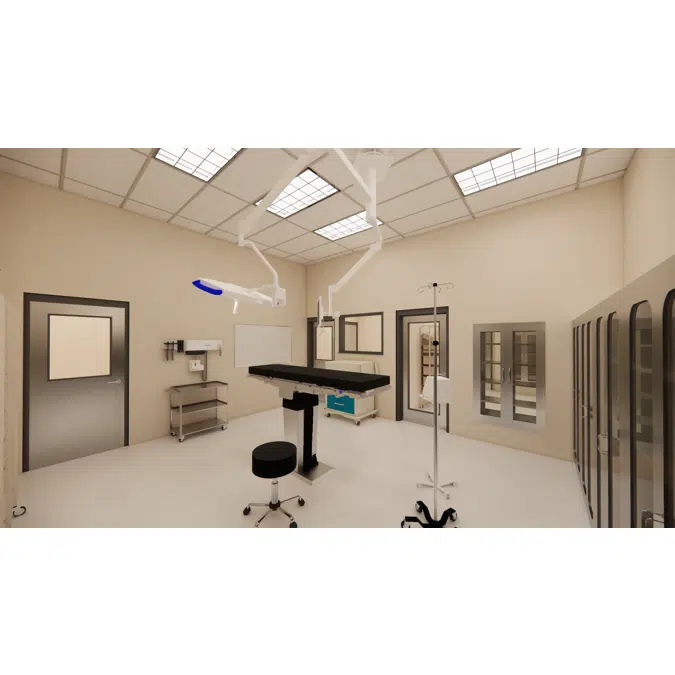

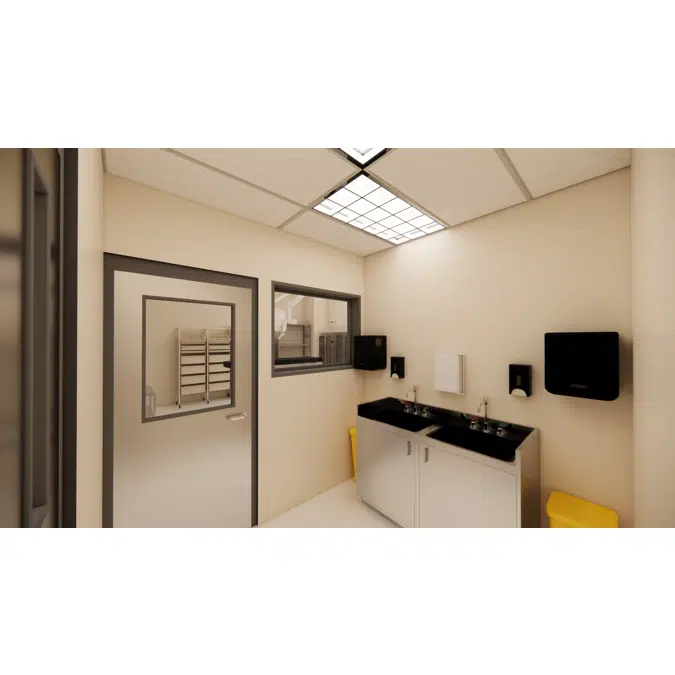

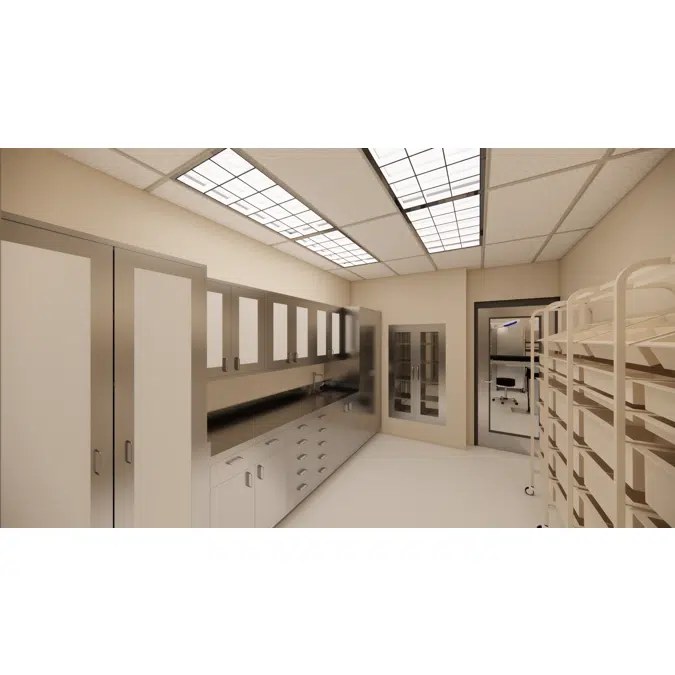

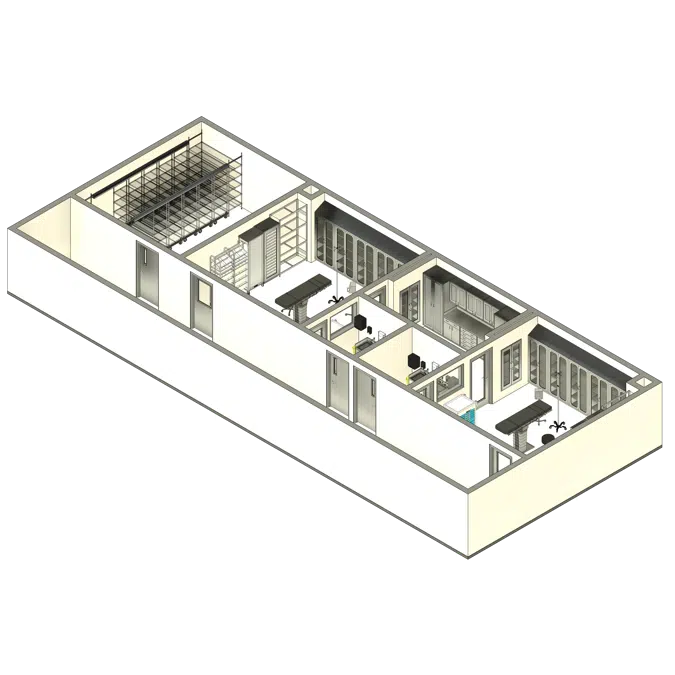

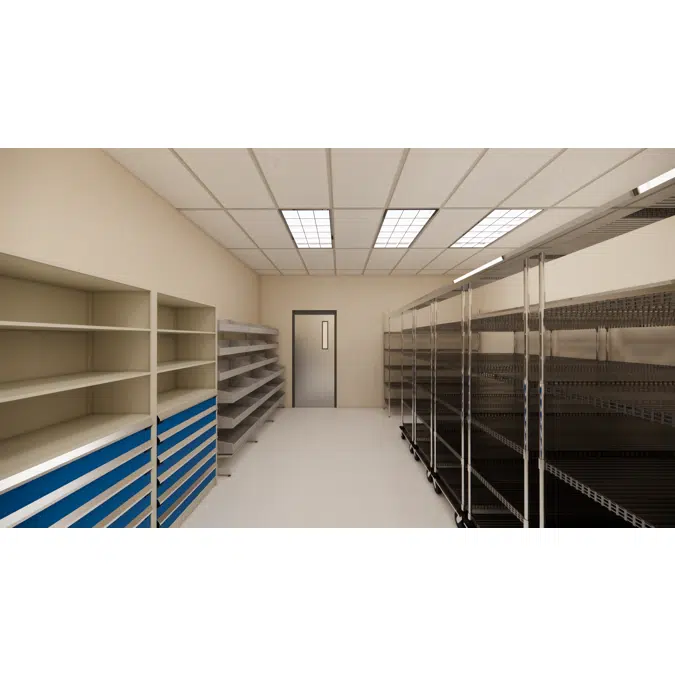

Sterile Core Sample Project

Infection-control-focused layout supporting clean-to-dirty workflows and sterile supply circulation.
BIM-ready Revit model with accurate Revit families for casework, storage, and medical equipment.
Optimized adjacency to operating rooms, prep, and decontamination zones for efficiency and safety.
BIM-Optimized resources designed for seamless use in Revit, enabling fast access to standardized Revit families, data-rich elements, and repeatable healthcare flows.

Designed for healthcare environments where infection control and operational efficiency are critical, this space manages sterile instruments, supplies, and equipment while maintaining strict separation between clean and soiled processes.The layout includes organized zones for sterile storage, instrument staging, case carts, and controlled access points connecting directly to operating rooms. Clear circulation paths and logical adjacencies help reduce staff travel distances, improve turnaround times, and support compliance with healthcare and accreditation standards. Integrated casework, shelving systems, and mobile storage are modeled to reflect real-world hospital workflows.This BIM-ready Revit model provides architects, designers, and BIM professionals with reliable geometry and data-rich Revit families tailored to healthcare projects. The adaptable design supports early planning, coordination with adjacent surgical spaces, and efficient documentation, making it an ideal starting point for hospital design, renovation, or expansion projects.

Specification

General Information
- Room type: Hospital / Sterile Core
- Approximate Area: ~1,500,3,000 sq. ft.
- Occupancy: 5-15 staff
- Layout Zones: Sterile storage, case cart staging, clean circulation paths
- Storage Features: Enclosed casework, open shelving, high-density storage, mobile carts
- Typical Use: Healthcare, surgical support, sterile supply management
