Open Vertical Slots Laminate Wall Cabinet

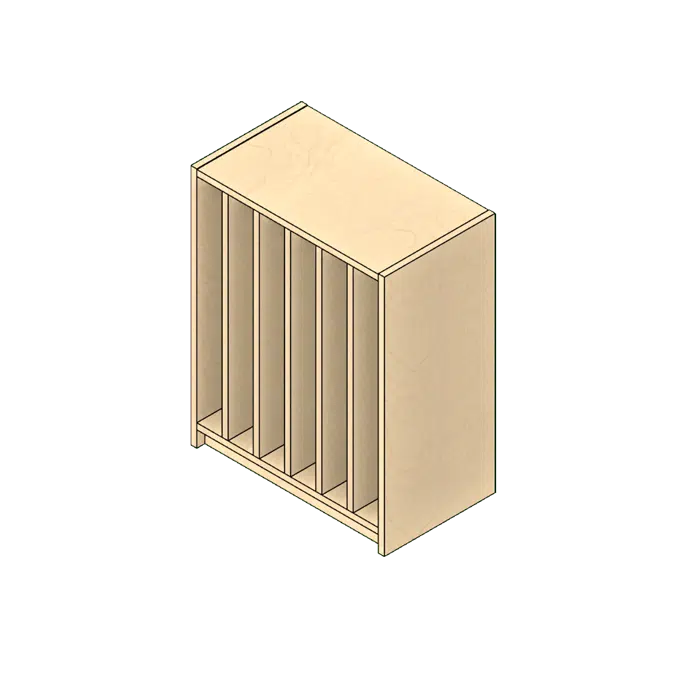

Open w/ Vertical Slots Wall Cabinet

Our open sorter wall cabinet with vertical slots is part of Southwest Solutions’ modular casework line; a flexible and durable alternative to built-in millwork. This is a highly customizable family, and all of our casework is backed with a Limited Lifetime Warranty. The cabinet is finished on all four sides and uses 2mm PVC edge banding for a durable, long-term solution. Actual depth of wall cabinets are 13 ¾” wide or 17 ¾” wide. Dividers are fixed with approximately 3” wide openings. Use simple parameters within the model to choose various handles, door types, and more.

Standard sizes
Widths: 24", 30", 36", 42"
Depths: 14", 18"
Heights: 30", 36", 42"

Pricing is INCLUDED in model
Dividers are fixed
Openings are approximately 3” wide
Rail mounted wall cabinets provide precise height and depth adjustments for clean installation.
Grommets can be included to allow for daisy chaining task lights.
Cost estimate updates dynamically with changes to the model

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again. Designed for versatility, this cabinet features one adjustable shelf and offers simple parameter adjustments for selecting handles, door types, and toe kicks, ensuring a perfect fit for any design aesthetic. Its compatibility with Revit software allows for dynamic cost estimate updates, streamlining project budgeting and planning. The high-quality hardware, including full-extension ball-bearing slides and soft-close options, ensures smooth operation and functionality in any environment.Such features include:

Quickly Manipulate Sizes
Toe Kick Options
Door Styles
Handle Types
Lock Options
Angled Top Options
Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

Specification

Description
- Our base cabinet is part of a modular casework line; a flexible and durable alternative to built-in millwork.
- Highly customizable family with a Limited Lifetime Warranty.
- Finished on all four sides with 2mm PVC edge banding for durability.
- Simple parameters for choosing handles, door types, toe kicks, and more.
- Pricing is included in the model with dynamic cost estimate updates.
- Includes one adjustable shelf.
Construction
- Cabinets are constructed of 3/4" thick industrial grade 40-50lb substrate, double-faced melamine
- All exposed edges are covered with 2mm PVC edge banding
- All panels are connected with hafele mini-fix cam hidden fastener system
- All cabinets are rail mounted for ease of install
- Uses high-quality hardware, such as full extension ball bearing slides with soft close options and concealed tool-less hinges.
- Multiple handle pull options available.
- Work surfaces are constructed of 1 1/16" thick high-pressure laminate
Sustainability
- Particleboard and MDF fabricated from recycled wood waste material
- Cardboard packaging made from recycled materials
- Unusable pallets are recycled
- All aluminum scrap is recycled
- All adhesives used are water-based
- Products meet low VOC standards
- Powder coat paint is used on all metal surfaces
