Spain_Trasdosado59mm_YL+Omega+TecsoundFt75

Spain_Trasdosado59mm_YL+Omega+TecsoundFt75

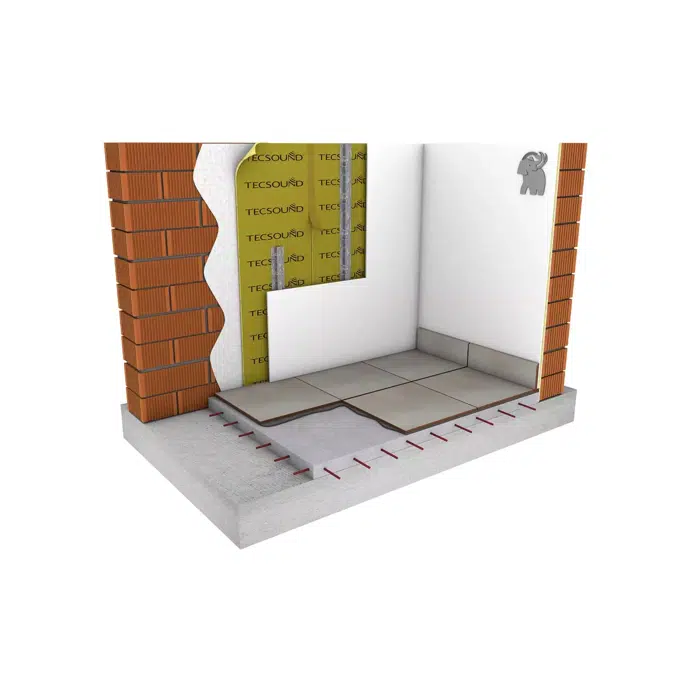

m2 Wall cladding made up of a soundproofing complex consisting of a porous textile fibre felt and an asphalt-free polymer-based synthetic sheet with a density of 2,010 Kg/m3, with a total density of 7.6 Kg/m2 and 14 mm thick, type TECSOUND FT 75, fixed to the support using contact adhesive or mechanical PVC dowel fixing, type FIJACION PT-H; self-supporting galvanised steel framework consisting of a horizontal and vertical structure with an Omega Profile; placement of the plasterboard fixed to the profiles with a thickness of 15 mm. Improvement of the overall acoustic reduction index: ΔRA = 10 dBA.

Technical specification

Unique ref.SOL000437
Product familywaterproofing
Product groupWaterproofing system for roof
TypeBuilding Material
Date of publishing2025-07-28
Edition number1

Related

Material mainElastomer
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryConstruction - Roof
IFC classificationWall
ETIM CodeEG020500
ETIM NameBuilding - insulation material
Uniclass 2015 CodeEF_25_10
Uniclass 2015 DescriptionWalls

Region availability

Europe
Spain
