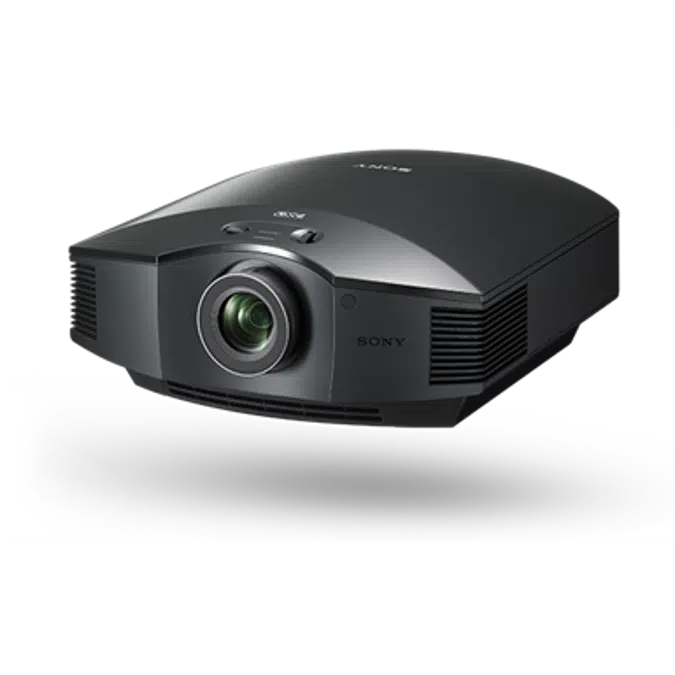

VPL-HW45ES Full HD SXRD Home Cinema Projector
VPL-HW45ES Full HD SXRD Home Cinema Projector
VPL-HW45ES Full HD SXRD Home Cinema Projector
    Sony

    VPL-HW45ES Full HD SXRD Home Cinema Projector

    Economical Full HD Home Theater ES Projector with Reality Creation, 3D

    Create a spectacular cinematic experience in your own home. The VPL-HW45ES is packed with technology developed for our professional Digital Cinema projectors, including SXRD panels and Advanced Reality Creation upscaling technology for fabulously detailed Full HD images. With 1,800 lumen brightness and a compact design, it's the perfect choice for unforgettable home entertainment.

    Spectacular Full HD pictures with Advanced Reality Creation

    Advanced SXRD® panel technology is teamed with Advanced Reality Creation - Sony's Super Resolution processing technology that refines subtle details, colors and textures. You'll see the difference with crisp, sharp Full HD pictures that take you closer than ever to the original 1080p source.

    High brightness and high contrast ratio

    With an impressive 1,800 lumens brightness and high contrast ratio, Full HD images are clear and with bright highlights and rich, deep blacks – even in well-lit rooms.

    Smooth, fluid on-screen action

    Coupled with the panel's super-fast response rate, Motionflow™ technology means you'll see every detail with minimal blur - no matter how fast the action.

    Long-lasting lamp

    Up to 6000 hour3 rated lamp operating life (in Low mode) means simpler maintenance, with fewer lamp swaps and reduced running costs.

    Flexible home installation with wide zoom and shift lens

    The manual zoom lens with a 1.6x zoom ratio and wide lens shift range gives greater installation flexibility in any room size, even with high ceilings.

    Industry standard RF 3D compatible
    The projector's built-in RF transmitter synchronizes with compatible Sony and 3rd party RF 3D glasses for wider coverage and greater stability, so there's no need for an external transmitter.

    Cinema-like 3D brightness
    Sony's dynamic lamp control technology and rechargeable 3D glasses work together perfectly to establish vibrant, cinema-quality brightness levels on your favorite 3D movies and shows.1.

    Whisper-quiet fan
    Forget that the projector is even in the room due to the advanced air discharge system. Sony's whisper-quiet fan emits only 22db during show time.

    Powerful picture calibration features
    Quickly calibrate your picture to the type of content you're enjoying with nine unique modes including a variety of cinema, gaming, photo and user customizable pre-sets.

    USB updates
    You're always up to date with the latest features and firmware updates via the projector's USB port.

    Three-year limited warranty
    All Sony Elevated Standard (ES) projectors enjoy three-year limited warranties.

    Front-facing fan

    With the fan exhaust positioned at the front of the projector, you don't need to worry about wall clearance and room for air intake/exhaust when installing. This helps maximize throw distance, for the biggest possible projected images.

    Specification
    • Video Features

      Color Light Output: 1800 lm (Lamp mode: High)*

      Light Output: 1800 lm (Lamp mode: High)*

      Size & Weight

      Dimensions (W x H x D): 16 1/8" x 7 1/8" x 18 3/8"

      Weight: Approx. 9 kg / 20 lb

      Power

      Power Consumption: MAX 310 W

      Power Requirement: AC 100 V to 240 V, 3.1 A to 1.3 A, 50/60 Hz

      Acoustic noise: 22 dB

      Operating Conditions

      Operating temperature / humidity: 5°C to 35°C (41°F to 95°F)/35% to 85% (no condensation)

      Storage temperature / humidity: -20°C to +60°C (-4°F to +140°F)/10% to 90% (no condensation)

      Interface

      Input and Output Terminals: HDMI (2 INPUTS) – Digital RGB/Y Pb/Cb Pr/Cr REMOTE – RS-232C, D-sub 9-pin (female) IR IN – Minijack, USB – DC 5 V, Max. 500 mA

      Hardware

      Projection lens zoom / focus: Manual (Approx. x1.6) / Manual

      General Features

      Effective Imager Size: 0.61 in x 3

      Effective pixels: 6,220,800 (1920 x 1080 x 3) pixels

      Projection lens shift: Manual, Vertical: +/- 71%, Horizontal: +/- 25%

      Screen Size: 40" to 300" (1,016 mm to 7,624 mm)

      Eco and energy saving

      Power Consumption (Standby Mode): 0.4 W

      Standby Mode Activated: After about 10 Minutes

      Display

      Display Resolution: Computer signal input : Maximum display resolution: 1920 x 1080 dots (HDMI Input only) / Video signal input : 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for HDMI input only. 1080/60p, 1080/50p, 1080/24p

      Display System: SXRD panel, projection system

      Light source: High-pressure mercury lamp, 215 W type


      *The values are estimate.

    Technical specification
    • Unique ref.VPL-HW45ES-Cinema-quality-projector
    • Product familyProjector Equipment
    • Product group4K, HD Home Theater, Lamp
    • TypeObject (single object)
    • Date of publishing2019-03-25
    • Edition number1
    Classification
    • BIMobject CategoryElectronics - Visual - Projectors
    • IFC classificationObject
    • ETIM CodeEC000690
    • ETIM NameVideo projector
    • UNSPSC nameProjectors and supplies
    • UNSPSC code451116
    • CSI MasterFormat 2014 Code11 52 16
    • CSI MasterFormat 2014 TitleProjectors
    • OmniClass Number23-37 15 19
    • OmniClass TitleVideo Projectors
    • CSI UniFormat II CodeE
    • CSI UniFormat II TitleEQUIPMENT & FURNISHINGS
