VPL-GTZ380 4K HDR Home Theater Projector

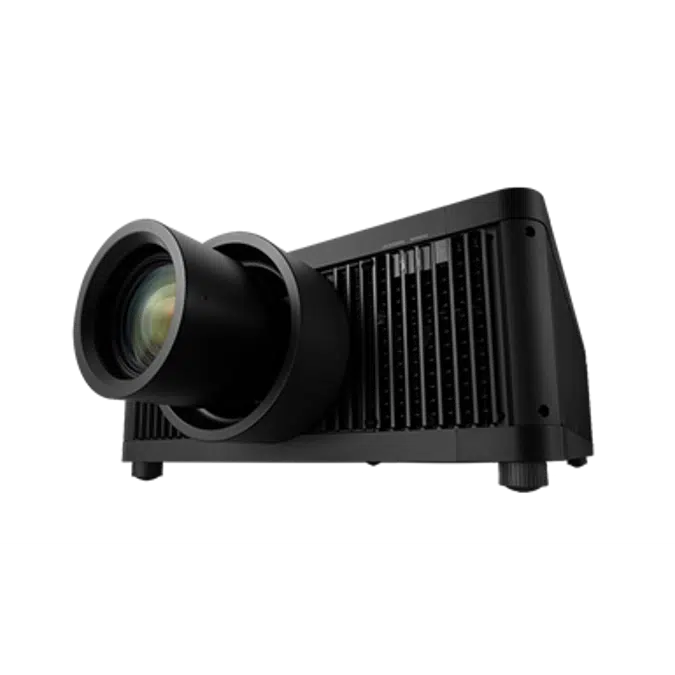

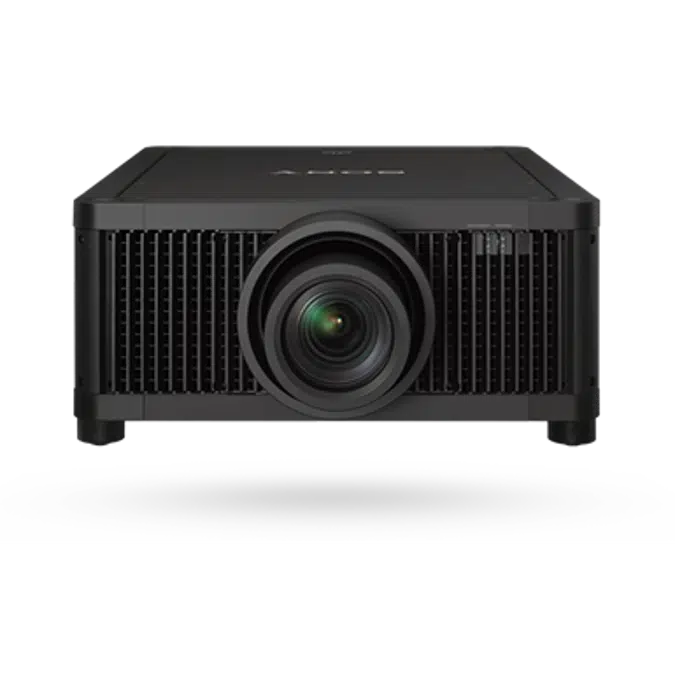

VPL-GTZ380 4K SXRD Laser Projector

Realize overwhelming native 4K image expression like you’ve never seen before. Sony’s X1 processor is paired with a super high contrast 10,000lm Z-Phosphor laser light source and DCI-P3 wide color space make your ultimate vision a reality. Object based super resolution enhances color and contrast for greater depth, cleaner textures, and more realistic pictures.

Spectacular 10,000-lumen brightness with DCI-P3 color gamut

A 100% DCI-P3 wide color gamut is achieved without sacrificing the high brightness of 10,000 lm, with a unique 3-channel laser light source. A high-intensity blue-laser activates the phosphor light source for wide gamut white light, while additional balanced red and blue laser light sources negate the need for a light-sapping color filter. The result is spectacular brightness and projected images with stunning realism even in well-lit spaces.

Native 4K SXRD^TM panel

The advanced SXRD^TM (Silicon X-tal Reflective Display) panel technology featured in Sony's home theater projectors delivers native 4K-resolution (4096 x 2160) images with 8.8 million pixels for an incredibly lifelike picture. SXRD projection offers rich, inky blacks as well as clear cinematic motion and image smoothness, and can reproduce vibrant colors with more tones and textures than a standard projector system.

Sony X1™ Ultimate for projector

X1™ Ultimate for projector is an innovative technology that uses advanced algorithms to cut noise and boost detail with high-precision frame analysis.

Making color and contrast more real

With Object-based HDR Remaster powered by X1^TM Ultimate for projector, the color in individual objects on screen is analyzed and the contrast adjusted, unlike most TVs and projectors where contrast is only adjusted along one black-to-white contrast curve. Because objects are remastered individually, this projector can reproduce greater depth and textures, and more realistic pictures.

Dynamic HDR Enhancer

Dynamic HDR Enhancer powered by X1^TM Ultimate for projector delivers the best contrast by processing HDR content scene by scene. It further enhances the contrast in combination with laser light output control, which makes bright scenes brighter and dark scenes darker to deliver bright 4K HDR images.

Individual objects-analyzed and enhanced

Object-based Super Resolution technology powered by X1^TM Ultimate for projector detects individual objects in a picture and preserves details on screen. Hundreds of objects are identified and their resolution is individually enhanced to give a picture of exceptional accuracy and detail.

4K Motionflow^TM

The powerful video processor in the VPL-GTZ380 offers Motionflow^TM for smooth and clear motion, even when viewing 4K content. Motionflow^TM is best for fast-moving sports content, as it adds frames to reduce blur while maintaining brightness. Cinema purists can choose True Theater mode to retain the original 24fps.

Specification

Accessibility
Screen Reader: Yes
Dimensions (Without Protrusions)
Dimensions (Without Protrusions): W 560 x H 228 x D 760 mm (W 22 1/16 x H 8 31/32 x D 29 15/16 in)
Digital Contrast Optimizer
Digital Contrast Optimizer: Yes
Dual database processing
Dual database processing: Yes
Object-based Super Resolution
Object-based Super Resolution: Yes
Object-based HDR remaster
Object-based HDR remaster: Yes
Input Output (Computer / Video / Control)
HDMI x 2 (HDCP2.3)
Optional Accessories
Optional accessories: VPLL-Z8014 (Normal throw lens) VPLL-Z8008 (Short throw lens)
Supplied Accessories
Supplied Accessories: RM-PJ29 Remote Commander (1), Size AA (R6) Manganese Batteries (2), AC power Cord (1), Lens Cap (1), Plug holder (1), Safety Regulations (1)
Mass
Mass: Approx. 51 kg / 112 lb.
Power Consumption
Power Consumption: Max. 2.0 kW (TBD)
Standby: 0.4 W (when “Remote Start” is set to “Off”)
Networked standby: 1.0 W (LAN) (when “Remote Start” is set to “On”) When a LAN Terminal is not connected, it becomes a low power consumption mode (0.5 W).
Power Requirements
Power Requirements: AC 200 V - 240 V, 50/60 Hz, AC 100 V to 120 V, 50/60 Hz*5 (Brightness is dimmed.)
Acoustic noise*3
Acoustic noise*3 *3 Depends on the projector setting condition and usage environment.: 33 - 39 dB
Input lag reduction
Input lag reduction: Yes (4K/2K)
Picture position memory
Picture position memory: 5
3D
3D: Yes
HDR Format
HDR FormatHDR10/HLG
Motionflow
Motionflow: Yes
Dynamic contrast control
Dynamic contrast control: Dynamic laser control
Digital Focus Optimizer
Digital Focus Optimizer: Yes
Dynamic HDR Enhancer
Dynamic HDR Enhancer: Yes
Picture processor
Picture processor: X1 Ultimate for projector
Input Output (Computer / Video / Control)
Trigger: x 2 (Mini jack, DC 12 V, Max. 100 mA)
RS-232C: x1 (D-sub 9-pin (male))
LAN: x1 (RJ-45, 10BASE-T/100BASE-TX)
IR IN / OUT: IN: x 1, Out: x 1 (Mini jack)
USB: x 1 (Type A, DC 5 V, Max. 500 mA)
Display Port: x 2 (HDCP2.3)
3D SYNC OUT: x 1 (3-pin mini-DIN (VESA 3D))
Accepted digital signals
Accepted digital signals :"720x576/50p, 720x480/60p, 1280x720/50p, 1280x720/60p,1920x1080/50i, 1920x1080/60i, 1920x1080/24p, 1920x1080/50p, 1920x1080/60p, 1920x1080/120p, 1920x1080/100p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840x2160/50p, 3840x2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096x2160/50p, 4096x2160/60p, WUXGA/60p, QXGA/60p, QXGA/120p, WQHD/60p, WQHD/120p, WQXGA/60p, WQXGA/120p
Dynamic contrast
Dynamic contrast: ∞: 1
Light output
Light Output: 10,000 lm
Light source
Light source: Laser diode
Projection lens
Focus: Powered
Zoom: Powered
Lens shift: VPLL-Z8014 (Optional) : Powered, Vertical: +/-80 %, Horizontal: +/-33 % VPLL-Z8008 (Optional) : Powered, Vertical: +/-50 %, Horizontal: +/-19 %
Throw ratio*1 *1 Display size : 16:9: VPLL-Z8014 (Optional) : 1.49 : 1 to 2.91 : 1 VPLL-Z8008 (Optional) : 0.85 : 1 to 1.09 : 1
Display device
Size of effective display area: 0.74” x 3
Number of pixels: 26,542,080 (4096 x 2160 x 3) pixels
Display system
Display System: 4K SXRD panel, projection system
