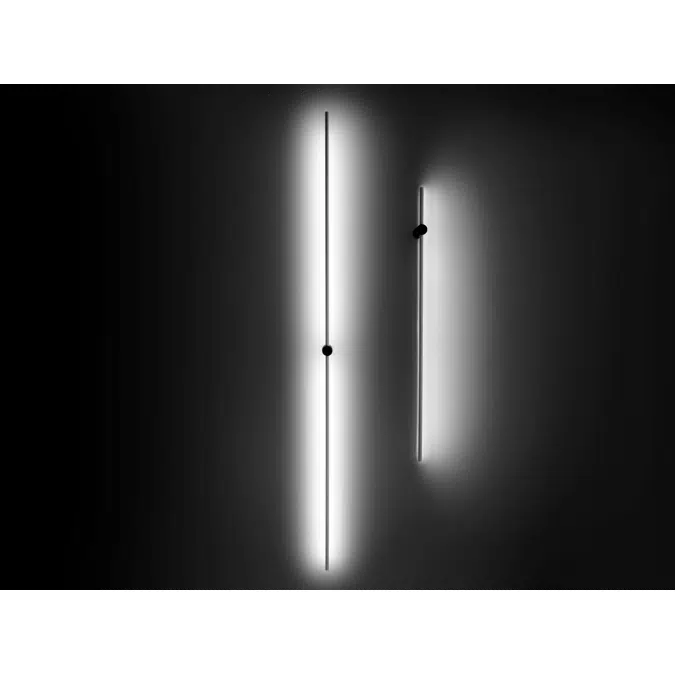

Feeling wall mounted

FEELING APPLIQUE 2m

Art. S.2281W

MODULES LED 3000K 24Vdc 440lm 14.4W CRI 90 MacAdam step 3

Rated luminaire luminous flux: 410lm

Rated input power: 14.5W

Luminaire efficacy: 28lm/W

Requires remote ON-OFF power supply or Dimmable power supply

CE

LUMINAIRE TYPE

Wall mounted luminaire. IP rating IP 54

MATERIAL CHARACTERISTICS

Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Transparent silicone end caps for LED circuit and aluminium EN AW-47100 for the extruded parts. Mechanical resistance IK 06 Painting Process : 3 Step Process

1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h.

LIGHTING PERFORMANCE

Continuous light source made of opal silicone. Lamp fixed position. LOR --

INSTALLATION AND MANTEINANCE

In the applique version, its thin stem can perform two different rotations: the first one, around its own axis ( 180° ), allows to direct the light beam, creating direct, indirect or lateral light effects; the second one, around the fixing joint ( 350° ) , allows the rotation of the stem from a vertical position to a diagonal or horizontal position.

WIRING

Supply 5m cable section type neoprene H05RN-F. Isolation: CLASS III . Available colours: White (cod.01), Black (cod.09). Weight: 0.62 Kg Glow Wire test: --

Lamp included.

FEELING REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
