Concrete Wall

CONCRETE WALL
Art. C.8050W
MODULES LED 3000K  230V CRI 80 MacAdam step 3
Rated luminaire luminous flux: 305lm
Rated input power: 10W
Luminaire efficacy: 31lm/W
Electronic ballast 220÷230V AC 50-60Hz
CE - ENEC 03

Fixture available with external DALI driver on request with surcharge.

LUMINAIRE TYPE

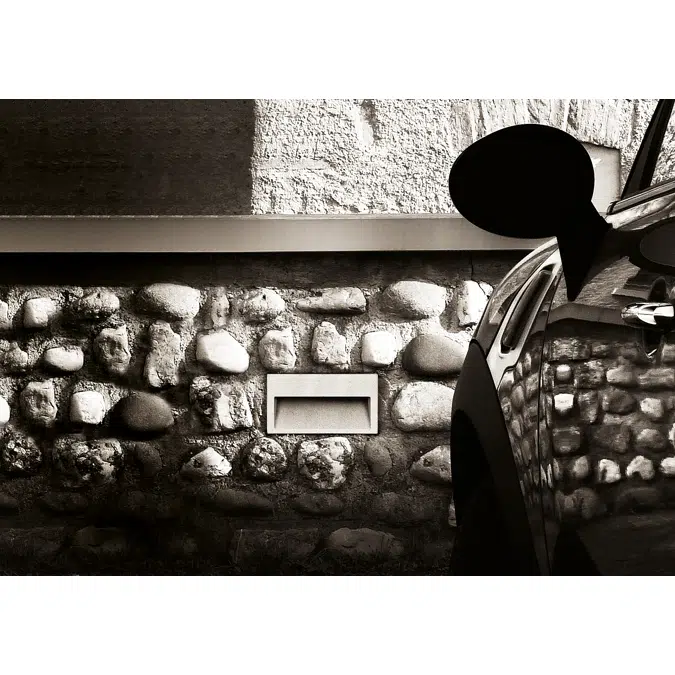

Wall mounted luminaire. IP rating IP 65
MATERIAL CHARACTERISTICS
Concrete covering with added synthetic fibers with high mechanical strength. Lighting fixture in Die-cast EN AB-47100 aluminium (low copper content) housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. This luminaire has been manufactured with hand crafted procedures, therefore small imperfections, subsidence of the concrete surface, actual cracks and future, colour ripples and variations over time, are deliberately present and they are a feature of the concrete luminaire, proving the hand-made manufacturing procedure. Mechanical resistance IK 10
LIGHTING PERFORMANCE
Toughened glass diffuser. LOR -- WIRING
Supplied with a pre-wired 3,0m H05RN-F cable. Isolation: CLASS I . Available colours: CONCRETE (cod.35). Weight: 1.82 Kg Glow Wire test: --
L.E.D circuit included.
CONCRETE WALL REGISTERED DESIGN
This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.
LED circuit boards are engineered accordingly to actual Lumen Maintenance regulation (LM80) and Technical Memorandum (TM21) where uniformity and quality of light is 50.000 hours referred to L70  B20 Ta 25°C.Lifecycle refers to LED circuit boards only, all others components of the luminaire are excluded.
