Any-Way

URBAN LIGHTING

ANY-WAY 250mm POLE TOP 76mm x POLE H4500/3000mm

S.1968W

module LED 3000K 220-240Vac DIMMABLE DALI; DALI2; PUSH

Rated module luminous flux:: 5440lm

Rated luminaire luminous flux: : 3706lm

Rated module power: : 31.7W

Rated luminaire power: : 35.6W

Luminaire efficacy: : 104lm/W

Voltage (AC): : 220-240Vac

Frequency (AC): : 50/60Hz

Voltage (DC): : 176-276Vdc (No PUSH DIM)

Dimmable: : DALI; DALI2; PUSH

PUSH Synchronization:

- Max 4 Luminaires, distance <15m;

- Max 35 Luminaires, distance <300m with S.2490 accessory.

Electrical insulation class: : II

Protection class IP: : IP65

Mechanical resistance: : IK06

CE

LUMINAIRE TYPE

Post top luminaire. IP rating IP 65

MATERIAL CHARACTERISTICS

Aluminium die cast housing in EN AB-47100 (low copper content) and extruded EN AW-6060 with high resistance against corrosion. Stone wash surface treatment prior to painting process. Steel screws treated with an advanced anticorrosive coating. Silicone Gaskets.

Extra-resistant Painting Process:

Extra-resistant exterior coating. Product suitable for applications in high-humidity environments, C5 ZONE (according to UNI EN ISO 9223:2012).

Mechanical resistance IK 06

LIGHTING PERFORMANCE

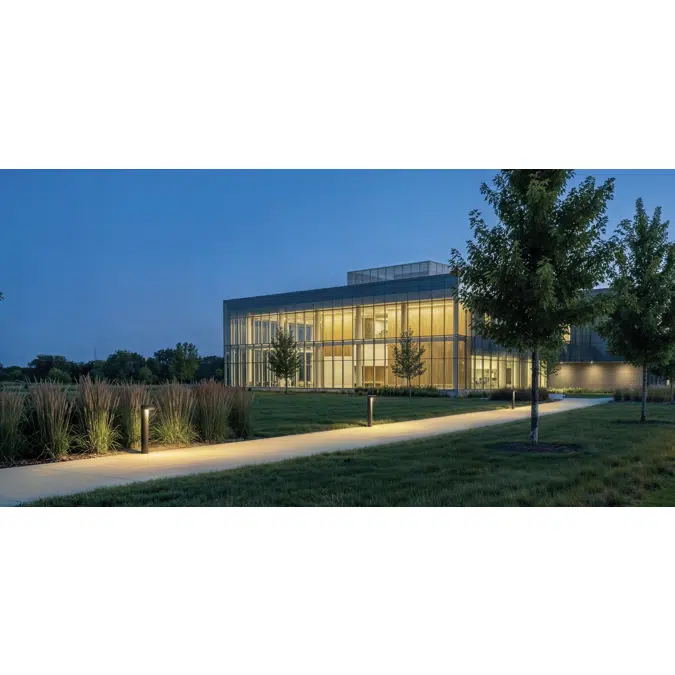

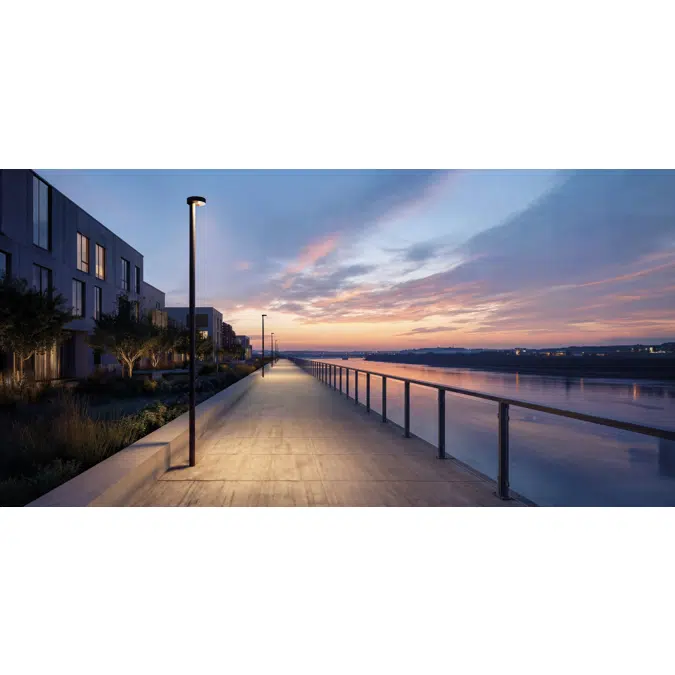

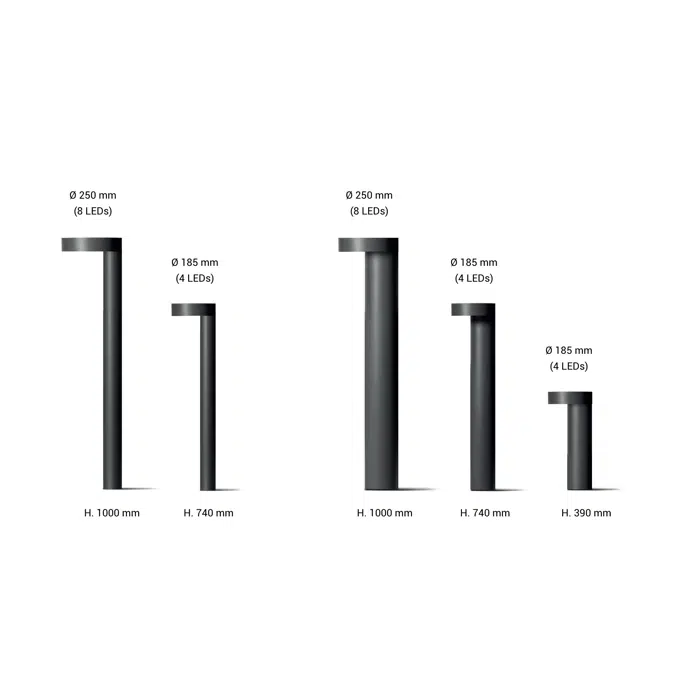

The light distribution is in accordance with light pollution regulations. Any-Way is a family of poles with asymmetrical optics, designed to illuminate pedestrian and cycle paths. It projects light over long reaches, covering wide spacing and reducing the number of fixtures required to ensure uniformity and efficiency. The design is essential: a cylindrical pole with an offset head integrating a 4-LED optic in the Ø185 mm version and an 8-LED optic in the Ø250 mm version, combined with different pole heights to meet project and regulatory requirements.

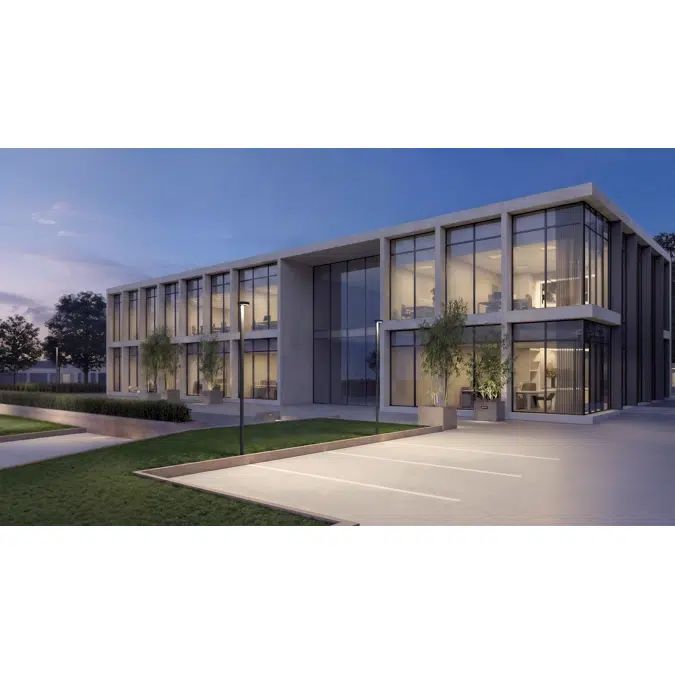

The Any-Way pole head, in both sizes, is also available with optics for squares and parking areas, designed to distribute light over a wide surface. Its performance and photometric distribution type complete the range, extending its use to this specific application.

Toughened glass. LOR --

POLE CONNECTION

Pole head in painted aluminium with Ø 60 mm connection (S.1955/S.1956, S.1958/S.1959), Ø 76mm (S.1965/S.1966, S.1968/S.1969).

WIRING

Supply 0.3m cable section type H05RN-F . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths. Fast connector IP67 (Ø 6÷12 mm) supplied as standard for single cable connection . Isolation: CLASS II . Available colours: Black (cod.09), Anthracite grey (cod.24). Weight: Kg Glow Wire test: --

LED module included

ANY-WAY REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): E.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.We recommend installing surge protection devices "SPD" in the electrical system. Protection devices prevent the intensity of these phenomena’s, protecting the appliances from the risk of being damaged and extending the lifespan. Outdoor luminaires are subject to all types of permanent, temporary, or transient electrical disturbances. Such disturbances can create permanent damage or failure affecting its performance and durability. The surge protection device (supplied by SIMES) is utilized to limit the destructive effect of these phenomena. We suggest that each luminaire must be connected to one protection device at not more than 10m away. For correct coordination of the protections, a surge protection device must also be provided inside the electrical panel of the system (the selection of this device must be carried out from the electrical designer and is not supplied by SIMES).

WARRANTY

All items produced from 01/01/2026 onwards are covered by a 5 (five)-year warranty against manufacturing and conformity defects, in accordance with the terms and limits set out in the manufacturer’s official documentation. For full details, exclusions and warranty activation procedures, please refer to the following link: www.simes.it/warranty
