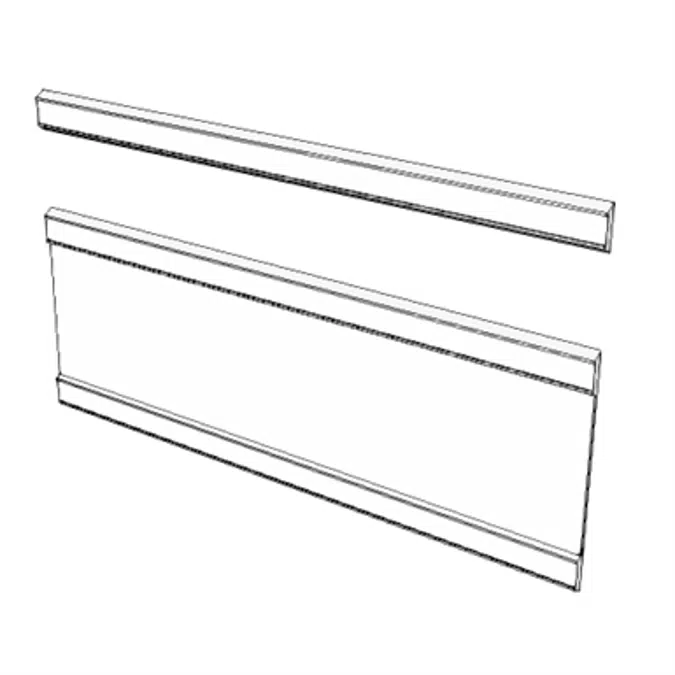

A1107 - Rail System , Utility, Gas and Electric

The headwall rail system shall consist of three horizontal rails mounted to the patient room headwall to provide utilities and patient services to support ancillary equipment to include gas and vacuum. The rail system must be capable of quickly adding or relocating medical gases services and be able to accept new equipment, provide physical support to equipment, brackets, shelves and other patient support items.
Technical specification
  • Unique ref.A1107
  • Product familyRail System
  • Product groupUtility
  • TypeRequirement Object
  • Date of publishing2016-01-01
  • Edition number1
  • Height (mm)244
  • Width (mm)3005
  • Depth (mm)250
Links
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryKitchen - Home Appliances
  • IFC classificationFurnishing Element

Region availability

North America
United States
