Schlüter-DESIGN-NICHE

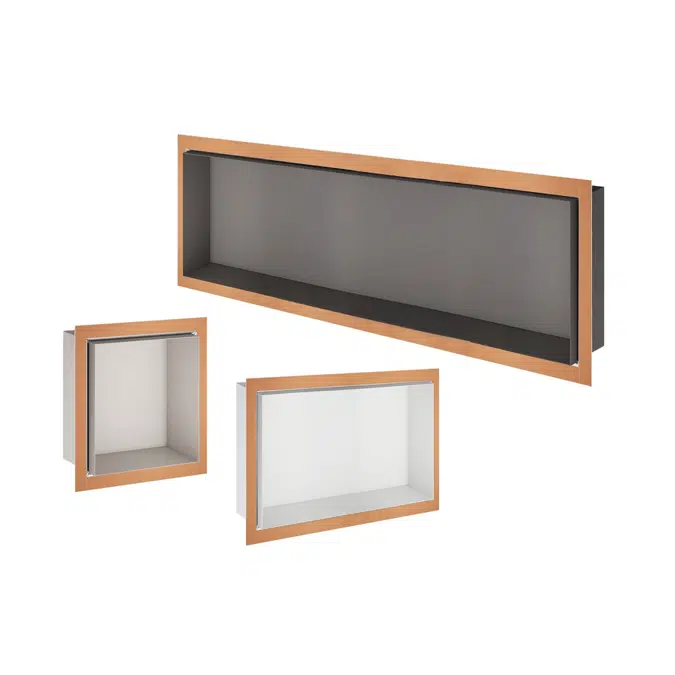

Functionality, flexibility and design in one system – the Schlüter DESIGN NICHE combines all of this. Not only in the bathroom, but everywhere in the house, the prefabricated built-in element opens up a wide range of possibilities for setting design highlights in walls: The rectangular niches are available in three different dimensions and nine attractive TRENDLINE colors and can be installed vertically or horizontally, flush with the surface or protruding from the covering.

The Schlüter DESIGN NICHE is made of powder-coated aluminum and comes with a height-adjustable frame made of anodized aluminum, a prefabricated KERDI sleeve for a secure seal and the KERDI-FIX assembly adhesive. Installation is quick and easy, and the niche also scores with its low weight and is waterproof. For a system-compliant design, all components of the set are glued with the KERDI-COLL sealing adhesive – this is available separately.

Specification

Installation in Schlüter-KERDI-BOARD:
1. Cut out by positioning and marking the outer dimensions of the niche and the frame precisely. Only the top layer of the frame has to be cut out. To cut out the niche, cut out the wall completely.
2. Determination of the above measure. Adjustment ranges from 3 mm to 55 mm selectable. Use of the 5 mm distance grid when using the knurled nut according to the illustration. Stepless adjustment of the distance when turning the knurled nut.
3. Apply KERDI-FIX to glue the spacers into the recess and then insert and align the spacers.
4. Apply KERDI-FIX to the spacers to glue the frame, then insert and align the frame.
Note: For clean processing, it is advisable to protect the outer surfaces of the niche with painter's tape.
5. Use KERDI-FIX to completely fill the joint between the niche and the frame.
6. The KERDI sealing sleeve is glued to the frame and the adjacent seal with KERDI-COLL-L. The painter's tape is then removed again. Fresh KERDI-FIX adhesive residues can be removed with spray oil (e.g. WD-40).
Maintenance:
DESIGN-NICHE does not require special maintenance or care. Do not use abrasive cleaning agents for sensitive surfaces. All cleaning agents must be free of hydrochloric acid and hydrofluoric acid.
Keywords: wall shelf, shower shelf, shower niche, wall niche, recessed shelf

Technical specification

Unique ref.schluter-design-niche
Product familyTechnology And Design With Profiles
Product groupAccessories
TypeObject (single object)
Date of publishing2026-02-04
Edition number1

Links

Product urlhttps://eu.schluter.com/de-DE/ablagesysteme-223/e/36176/design-niche?search=design%20niche
Installation instructionshttps://eu.schluter.com/de-DE/ablagesysteme-223/e/36176/design-niche?search=design%20niche
Instruction videohttps://www.youtube.com/watch?v=WoDiGmzXbco
Product certificationhttps://eu.schluter.com/de-DE/ablagesysteme-223/e/36176/design-niche?search=design%20niche
Technical descriptionhttps://eu.schluter.com/de-DE/ablagesysteme-223/e/36176/design-niche?search=design%20niche

Material mainAluminium

Classification

BIMobject CategorySanitary - Bathroom Accessories
Uniclass 2015 CodeSs_40_15_75_78
Uniclass 2015 DescriptionShower area systems
CSI MasterFormat 2014 Code10 28 00
CSI MasterFormat 2014 TitleToilet, Bath, and Laundry Accessories
OmniClass Number23-15 15 31 13
OmniClass TitleWall Niches
