ELM90HFA Adjustable Louver
Ruskin

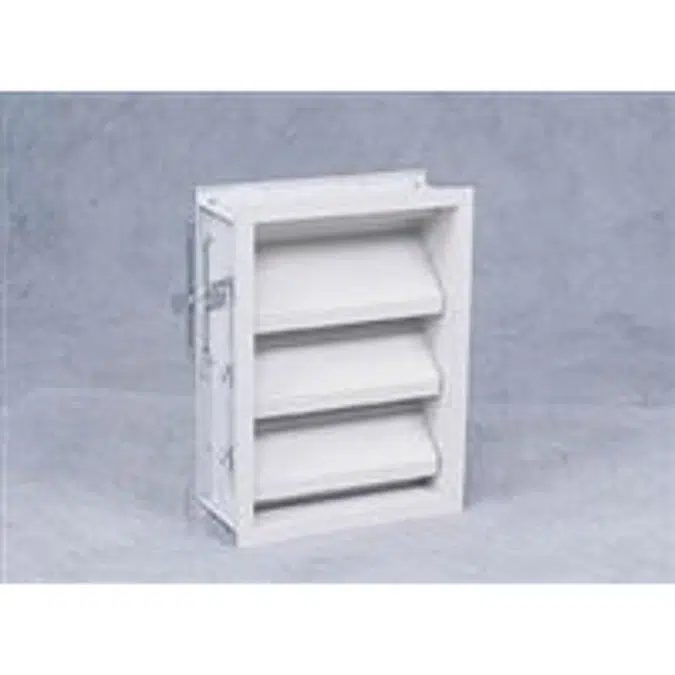

ELM90HFA Adjustable Louver

The ELM90HFA Adjustable Louver is 6" deep and has a 90 degree blade angle. It features:

• 74% free area.
• Low torque operation and architecturally pleasing appearance with low leakage performance.
• Concealed blade linkage is protected from weather exposure and reduces required installation depth.
• Blade and jamb seal options provide tight blade-to-blade and blade-to-frame closure.
Technical specification
  • Unique ref.ruskin-010
  • Product familyDoors
  • Product groupFixed Exterior Louvers and Grilles
  • TypeObject (single object)
  • Date of publishing2014-05-14
  • Edition number1
Links
Classification
  • BIMobject CategoryDoors - Louvers

Region availability

North America
United States
