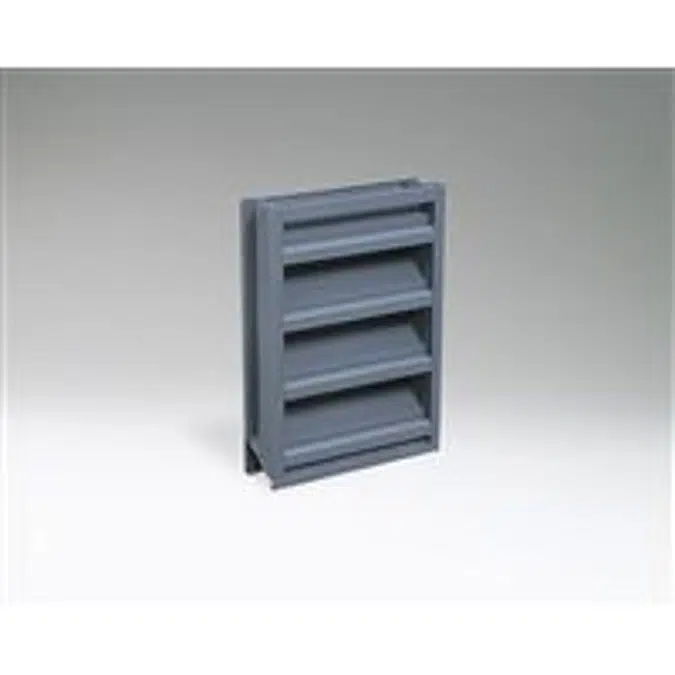

Ruskin Aluminum Stationary Drainable Louver ELF375DXH

Ruskin Aluminum Stationary Drainable Louver ELF375DXH

Ruskin Aluminum Stationary Drainable Louver ELF375DXH

The ELF375DXH is a Stationary Louver with a 4" deep frame, drainable blades, and a 37 1/2 degree blade angle. It features:
54% free area.
A high performance frame system with a drainable head that collects and removes water for excellent water penetration performance.
Drain gutters in blades to minimize water cascading.
Architecturally styled, hidden mullions allowing continuous line appearance up to 120".
All aluminum construction for low maintenance and high resistance to corrosion.

Specification

The ELF375DXH is a Stationary Louver with a 4" deep frame, drainable blades, and a 37 1/2 degree blade angle. It features:
54% free area.
A high performance frame system with a drainable head that collects and removes water for excellent water penetration performance.
Drain gutters in blades to minimize water cascading.
Architecturally styled, hidden mullions allowing continuous line appearance up to 120".
All aluminum construction for low maintenance and high resistance to corrosion.

Technical specification

Unique ref.rd-19
Product familyFixed Exterior Louvers and Grilles
Product groupStationary Louvers
TypeObject (single object)
Date of publishing2009-09-09
Edition number1

Links

Product urlhttps://www.ruskin.com/model/elf375dxh
Installation instructionshttps://www.ruskin.com/doc/Id/9540
Product certificationhttps://www.ruskin.com/doc/Id/6890
Technical descriptionhttps://www.ruskin.com/doc/Id/6890

Classification

BIMobject CategoryDoors - Louvers

Region availability

North America
United States
