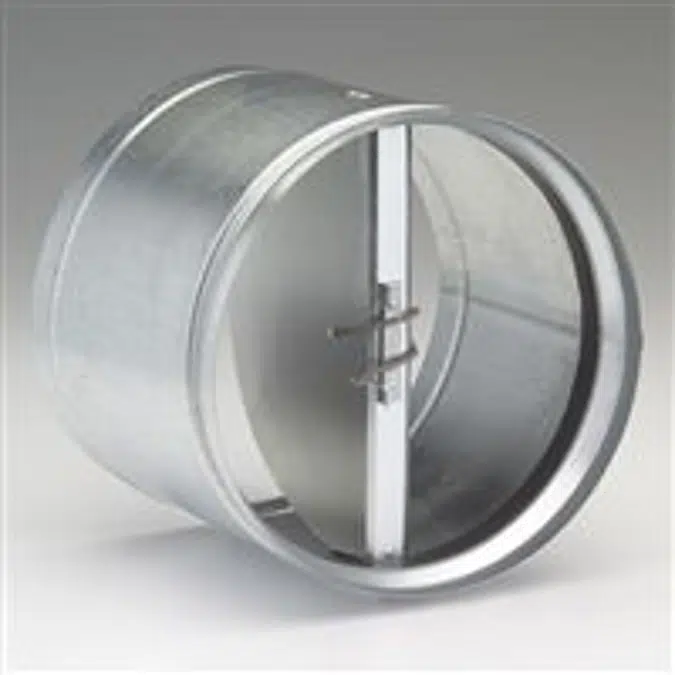

BDR2 Commercial Backdraft Damper

BDR2 Commercial Backdraft Damper

4.3(7 reviews)

The BDR2 round backdraft damper was developed in response to industry requirements for a round backdraft damper. It features:

Low leakage.
Easy to install in round spiral ductwork.
Specially designed blades with closing spring insuring a tight seal.
Minimized back flow through the damper.
Ruskin's exclusive blade hinge design with no frame penetrations to allow air leakage out of the duct.
Integral rolled blade stop

Specification

The BDR2 round backdraft damper was developed in response to industry requirements for a round backdraft damper. It features:
- Low leakage.
- Easy to install in round spiral ductwork.
- Specially designed blades with closing spring insuring a tight seal.
- Minimized back flow through the damper.
- Ruskin's exclusive blade hinge design with no frame penetrations to allow air leakage out of the duct.
- Integral rolled blade stop.

Technical specification

Unique ref.rd-00317-151
Product familyDampers for Air Ductwork
Product groupBackdraft and Pressure Relief Dampers
TypeObject (single object)
Date of publishing2009-09-09
Edition number1

Links

Product urlhttps://www.ruskin.com/model/bdr2
Technical descriptionhttps://www.ruskin.com/doc/Id/1170

Classification

BIMobject CategoryHVAC - Ductwork

Region availability

North America
United States
