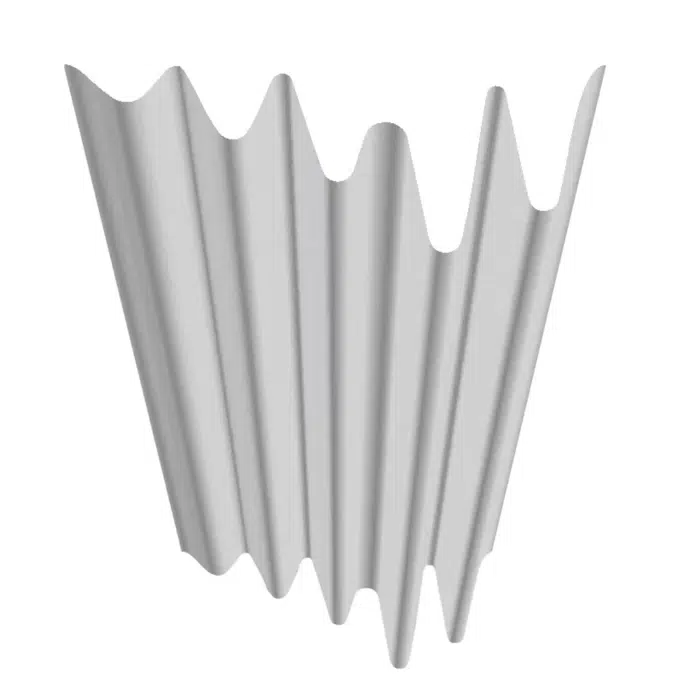

Waveform® Wiggle G Acoustical Panels

The Waveform® Wiggle G Panel was created by implementing spline shape optimization and virtual performance modeling through boundary element method calculations to create a uniquely shaped surface providing high quality, broad bandwidth 2D scattering for uniform coverage. RPG’s patented aperiodic modulation of a single asymmetric base shape allows arrays to be built for improved diffusivity with each additional element.

Constructed of smooth, rigid, non-combustible glass fiber reinforced gypsum (GFRG), the Waveform® Wiggle G Panel leverages the most advanced surface development and analyzation methods available today.

Specification

SIZING
• Standard: 2' W x 8' L x varies up to 12" D
(Custom panel lengths up to 8' are available)
• Material Thickness: 1/8" nominal GFRG
• Each panel weighs approx. 8 lbs/ft2
CORE FIRE RATING
Non-Combustible
FINISH
The Waveform® Wiggle G Panel comes in a natural/ raw GFRG finish required to be painted on-site or factory
color-matched to any paint color specification.
INSTALLATION
Overhead mounting of the Waveform® Wiggle G Panel is achieved by suspending units from integrated
hairpin loops using RPG-supplied engineered cables and hardware. Each panel can be hung as a “cloud”
or screwed together to create a canopy. Units can be mounted directly onto walls using RPG-provided
integrated cleats. Panels can be taped, mudded and sanded to create panels longer than 8'.

Technical specification

Unique ref.waveform-wiggle-g
Product familyArchitectural Acoustics
Product groupDiffusion
TypeObject (single object)
Date of publishing2024-11-25
Edition number1

Links

Product urlhttps://www.rpgacoustic.com/product/waveform-wiggle-g/

Material mainGypsum
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationFurnishing Element
ETIM CodeEG017960
ETIM NameFurniture
Uniclass 2015 CodeSs_25_25_05
Uniclass 2015 DescriptionAcoustic panel systems
CSI MasterFormat 2014 Code09 84 00
CSI MasterFormat 2014 TitleAcoustic Room Components
OmniClass Number23-15 13 19 35
OmniClass TitleAcoustical Wall Treatment
