Rolflex

Compact Glass sectional folding door

The Compact folding door is a unique sectional industrial door which folds its panels into a compact package above the door opening. There are no overhead rails, which makes this door ideal for a wide range of applications.

The door is designed to provide design freedom for architects and constructors. Limited space needed and no constructional adaptations necessary.

Our glass sectional doors can be fitted with acrylic, polycarbonate, safety glass and many other types of materials.

Ideal in these situations:

Buildings with installations behind the door, such as in car wash, car workshops, crane tracks, spray cabins

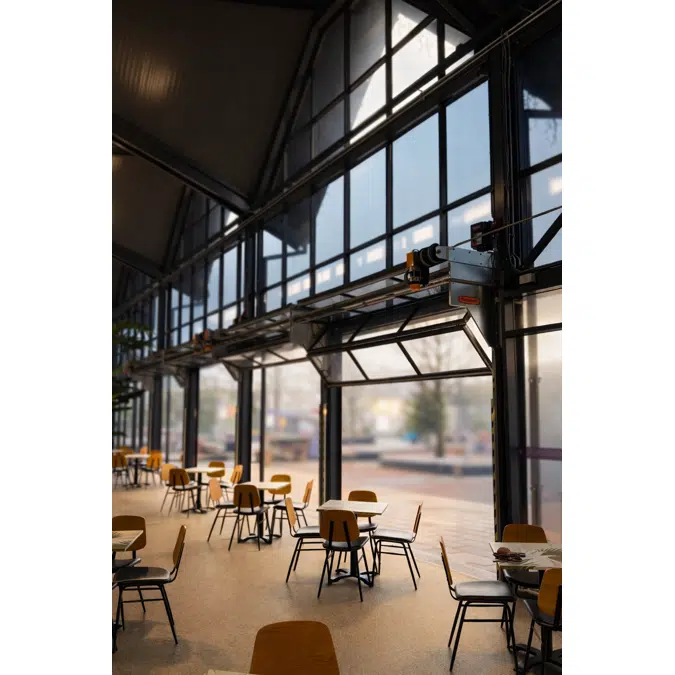

Commercial spaces, where esthetics are crucial. The door can be integrated in the ceiling or blends seamlessly into the facade.
Internal doors: When separating to rooms, this door is ideal. Silent and almost invisible when opened.

Configure the Compact door online now, download customized drawings and get a quotation. Visit Rolflex.com for more info.

Specification

Specification: “Compact” ALUMINIUM SECTIONAL OVERHEAD DOOR
version: 102.0 date: 01-07-2000
1 Manufacturer: Rolflex Nederland B.V. of Ulft.
2 Impermeability (NEN 2778+w97): up to 600 Pa.
3 Strength and rigidity (NEN 6702+w97): up to 600 Pa.
4 Type: Compact sectional door.
NOTE: All the door sections fold together above the doorway.
5 Dimensions: - width (mm): ....
- height (mm): ....
6 Door sections: aluminium profiles with transparent fillings.
7 height (mm): 610.
8 thickness (mm): 40.
9 insulating material: hard polystyrene core (if sandwich panels are combined).
10 - internal and external lining: aluminium stucco panels, total
thickness 0.8 mm
11 Surface treatment: anodised, silicon polyester
Option: powder coated rails.
Standard colours (RAL): 3002 Carmine red
5010 Ocean blue
5017 Traffic blue
6005 Moss green
7016 Anthracite grey
7032 Pebble grey
9002 Grey white
9006 White aluminium.
- colour of the outside (RAL) ......
12 Glazing: acrylate, double-glazed full-vision panels.
\Glazing: acrylate, double-glazed snap-in windows.
13 Ventilation panel (w x h) (mm): 450 x 90.
\Ventilation panel.....
14 Wicket door (w x h) (mm): 875 x 2200 approx.
15 Operation: #
\electrical, tubular motor 230 V.
\electrical, slip-fit motor 400 V.
\electrical, high-speed motor 400 V.
\electrical, top-mounted motor.... \with hand chain hoist.
NOTE: A top-mounted motor is required if space at the side is
limited.
16 \- impulse transmitter: dead man’s system.
\- impulse transmitter: switch.
\- impulse transmitter: pull switch. \- impulse transmitter....
17 \Accessories:
18 \- door furniture.....
19 \- hinges: corrosion-resistant steel.
20 \- door fittings: hot-dip galvanized. \- door fittings....
21 \- seals: rubber.
22 \- cable break protection.
23 \- fall protection.
24 \- anti-lift protection.
25 \- spring-mounted floor consoles.
26 \- object detection system.
27 \- fixings.....
28 \-.....

Technical specification

Unique ref.glass-sectional-folding-door
Product familyFolding doors
Product groupCompact sectional doors
TypeObject (single object)
Date of publishing2022-11-01
Edition number1

Links

Material mainAluminium
Material secondaryPolycarbonate
Designed inNetherlands
Manufactured inNetherlands

Classification

BIMobject CategoryDoors - Folding Doors
IFC classificationDoor
UNSPSC nameDoors
UNSPSC code301715
Uniclass 2015 CodePr_30_59_24
Uniclass 2015 DescriptionDoorsets
OmniClass Number23-17 11 13
OmniClass TitleMetal Doors
