Rockfeu REI 120 RsD (FR) for sub-concrete-slab insulation

Rockfeu REI 120 RsD (FR) for sub-concrete-slab insulation

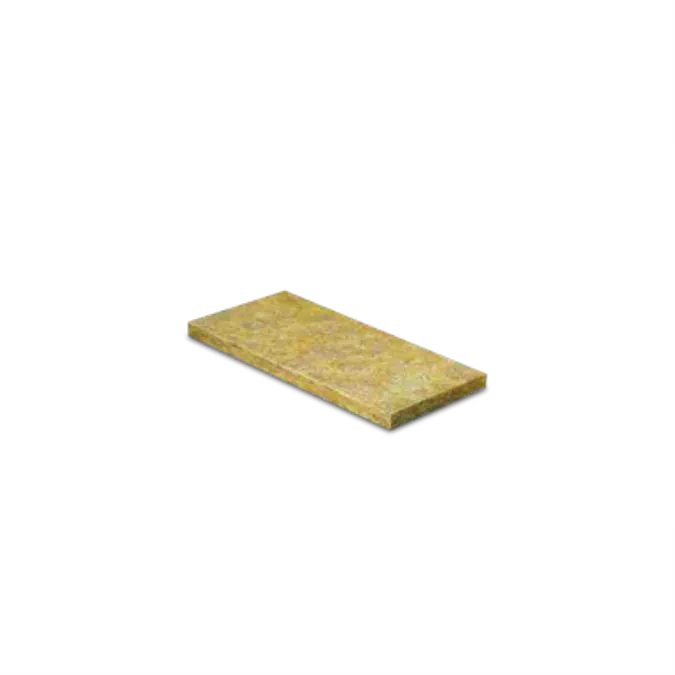

[Product by ROCKWOOL France S.A.S. Please check availability in your country] FLOOR COMPOSITION from inside to outside : - Concrete slab 230mm - ROCKFEU REI 120 RsD - 5 dowels per insulation board ROCKFEU REI 120 RsD is an uncoated double density bare stone wool insulating board. Fire resistance 120 minutes under concrete slab 140 mm. APPLICATION : ROCKFEU REI 120 RsD is used for insulation of floors in sub-slab (insulation of an existing slab by pegging on the underside of it).

Specification

60 and 75 mm thicknesses : Stone wool insulation double-density board. Thermal conductivity (ACERMI) = 0,035 W/m.K Two layers density : average from 75 to 72 kg/m3 85+ mm thicknesses : Stone wool insulation double-density board. Thermal conductivity (ACERMI) = 0,034 W/m.K Two layers density : average from 72 to 66 kg/m3

Technical specification

Unique ref.RWF_SYS_ROCKFEU_REI_120_RSD_DALLE_BETON
Product familyInsulation
Product groupFloor : Sub-slab
TypeObject (single object)
Date of publishing2018-09-12
Edition number1
Height (mm)600
Width (mm)1350
Depth (mm)405

Links

Product urlhttp://www.rockwool.fr/produits/fr-rockfeu-rei-120-rsd/
Installation instructionshttps://static.rockwool.com/globalassets/rockwool-fr/documentations/fiches-produit/rockwool_fp_rockfeu_rei_120_rsd_201711.pdf
Product certificationhttp://www.acermi.com/isolants-certifies/rechercher/
Technical descriptionhttps://static.rockwool.com/globalassets/rockwool-fr/documentations/fiches-produit/rockwool_fp_rockfeu_rei_120_rsd_201711.pdf

Related

Material mainStone Wool
Designed inFrance
Manufactured inFrance

Classification

BIMobject CategoryBuilding Materials - Insulation
IFC classificationWall

Region availability

Africa	Europe
Algeria	France
Côte d'Ivoire
Libya
Mauritania
Morocco
Senegal
South Africa
Tunisia
Western Sahara
