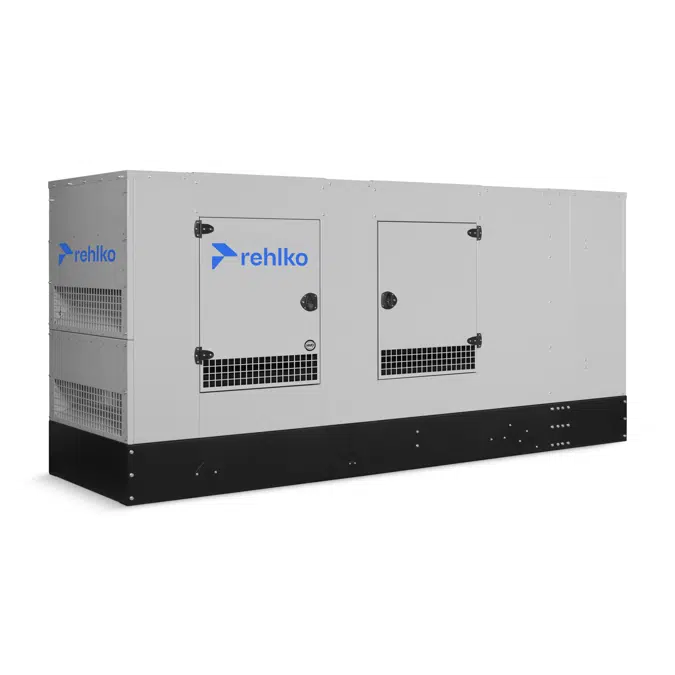

230REOZJE, Industrial Diesel Generator

Model Number 230REOZJE, 60 Hz

Standard Features

• Rehlko provides one-source responsibility for the generating systems and accessories
• The generator set and its components are prototype-tested, factory-built, and production-tested
• The 60 Hz generator set offers a UL 2200 listing
• The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
• A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available
• The generator set complies with Environmental Protection Agency (EPA) emergency stationary emissions requirements

Other Features

• Rehlko designed controllers for guaranteed system integration and remote communication
• The low coolant level shutdown prevents overheating (standard on radiator models only)
• Integral vibration isolation eliminates the need for under-unit vibration spring isolators
• Durable weather and sound enclosures available
• Various sizes of UL 142 listed subbase fuel tanks available
• Multiple circuit breaker configurations available

Alternator Features

• Rehlko's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
• NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
• Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
• Self-ventilated and drip-proof construction
• Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
• Superior voltage waveform from a two-thirds pitch stator and skewed rotor
