REHAU | Window Solutions

REHAU | ARALYA | DOORS | BALCONY

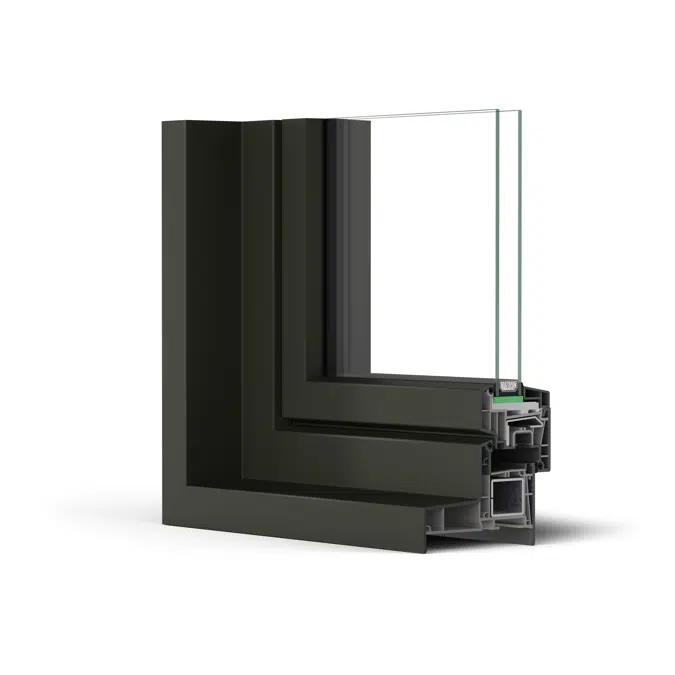

The Aralya Design Series, with its glazing width of 62 mm, offers the possibility

Integrate triple glazing/ Panels up to 50 mm thick. The system is characterized by

its straight or rounded shapes. The tread depth of 77 mm thickness and its 5 chambers including reinforcement are generously proportioned.

The Aralya design allows the implementation of all types of openings.

Specification

Elevation width frame/sash:	116mm to 164mm
overall depth:	77mm
Thermal insulation Uf (EN 12412-2):	up to 1.3 W/(m2K)
Sound insulation Rw (ISO 10140-2):	up to 40dB
Wind resistance (EN 12210):	up to class VA3
Driving rain tightness (EN 12208):	up to class E7b
Air permeability (EN 12207):	up to grade 4

Technical specification

Unique ref.ARALYA_DOORS_BALCONY
Product familyREHAU | ARALYA
Product groupREHAU | ARALYA
TypeObject (single object)
Date of publishing2022-12-19
Edition number1
Depth (mm)77

Links

Product urlhttps://window.rehau.com/fr-fr/fenetres-baie-vitree-coulissant-porte-fenetre-pvc

Related

Material mainPVC
Material secondaryGlass
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryWindows - Tilt and Turn Windows
IFC classificationWindow
UNSPSC nameDoors and windows and glass
UNSPSC code3017
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows

Region availability

Europe
France
