503/603 Ticket Window, Teller Window, Cashier Window
503/603 Ticket Window, Teller Window, Cashier Window

    503/603 Ticket Window, Teller Window, Cashier Window

    4.8 out of 5 stars4.8(6 reviews)

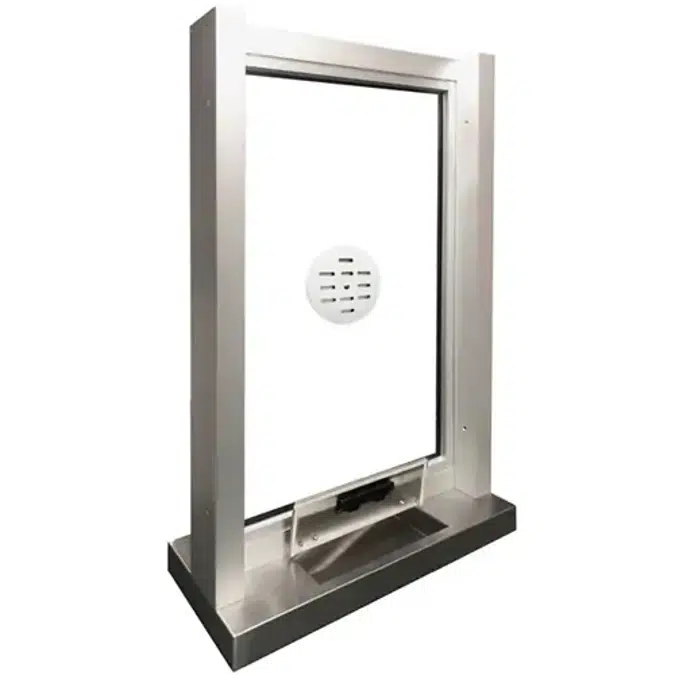

    The Ready Access 503/603 Ticket Window is available in a myriad of configurations to meet your security, sound, and budget needs. Choose the size, glazing, pass thru system and speak thru option that’s best for you. Window supplied fully assembled with speak thru. Chosen pass thru option is shipped loose.

    (3) standard glazings to meet your budget and security needs

    • 1/4″ clear tempered glass
    • ¾” Level 1 bullet resistant lexan
    • 1-1/4″ Level 3 bullet resistant lexan

    Multiple speak thru options

    • Stainless Steel for ¼” clear tempered glass
    • Lexan Level 1 or Level 3 to match the window -maximizes visibility and value on bullet resistant windows
    • Stainless Steel with bullet resistance for bullet resistant glazing
    • Amplified with bullet resistance and battery for wireless voice amplification and no wiring to cover

    Multiple ways to address the pass thru area

    • None – create your own pass thru with blocking / counter material.   Or “float” the window above the counter by mounting through sides.
    • Drop in Deal Tray
    • Stainless Steel Shelf with Deal Tray
    • Optional Inside Cover for Drop in Deal Tray or Stainless Steel Shelf with Deal Tray

    This window is ideal for a wide variety of cashier window applications including convenience stores, amusement parks, box offices, theaters, racetracks, sporting and concert venues, zoos, pools, and park district offices. It is also commonly used in municipal projects and as a teller window at banks.

    Anodized aluminum extrusions and stainless steel combine to give you an attractive window that can be used for interior or exterior applications

    • Window is fully assembled, pre-glazed and ready to install
    • Clear Aluminum or Dark Bronze frame with multiple speak thru and pass thru options
    • Powder coat frame available
    • Available with a variety of standard glazing options to meet your security and budget considerations

    Applications

    • Interior Transaction Windows
    • Ticket Windows
    • Teller Windows
    • Bullet Proof Transactions (L1 and L3 Bullet Resistance)
    • Concession Windows
    • Bank
    • Corrections (Prison/Parole/Municipal)
    • Dispensary
    • Distribution Center
    • Medical Office/Hospital
    • Office Reception
    • Park / Zoo/ Aquatic Center
    • School
    • Stadium
    • Theater
    Specification
    • Standard Features

      Standard Sizes:

      • 24”w x 36”h
      • 25.75”w x 42”h
      • 30”w x 36”h
      • 36″W x 36″h
      • 48″W x 48″h

      Listed height includes 2.25” stainless steel deal tray with shelf.   See additional pass thru options below.

      Glazing Options

      VALUE – 1/4” clear tempered glass

      SECURITY

      • 3/4” Lexan Level 1 Bullet Resistance
      • 1 1/4” Lexan Level 3 Bullet Resistance

      (not tested for hurricane NOA)

      Speak Thru Options

      • Stainless Steel for ¼” clear tempered glass
      • Lexan Level 1 or Level 3 to match the window -maximizes visibility and value on bullet resistant windows
      • Stainless Steel with bullet resistance for ¾” Level 1 or 1.25” Level 3 – this option has a hole compatible with amplified speak thru if needed later
      • Amplified with bullet resistance and battery for wireless voice amplification

      Pass Thru Options

      • None* –  create custom pass thru area with blocking or counter material.  Or “float” the window above the counter at desired height.  Bottom 2”d extrusion is smooth.   Caps for side extrusions provided for ¼” glass models.  Floating not recommended for Bullet Resistant applications.
      • Drop in Deal Tray* – drops into counter for clean aesthetic and great value – Deal tray transaction area is 12”wide x 1 7/8”deep.
      • Stainless Steel Shelf with Deal Tray – Deal tray transaction area is 12”wide x 1 7/8”deep
      • Inside Cover for either the Drop in Deal Tray or Stainless Steel Shelf with Deal Tray

      * Deduct 2.25” from listed height if these pass thru options are selected.

    Technical specification
    • Unique ref.503-603-ticket-teller-cashier-window
    • Product familyWindows
    • Product groupWalk Up Windows
    • TypeObject (single object)
    • Date of publishing2022-08-30
    • Edition number1
    Related
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryWindows - Ticket Windows
    • IFC classificationWindow
    • UNSPSC nameWindows
    • UNSPSC code301716
    • Uniclass 2015 CodePr_30_59_57
    • Uniclass 2015 DescriptionOpening security and protection products
    • CSI MasterFormat 2014 Code08 56 53
    • CSI MasterFormat 2014 TitleSecurity Windows
    • OmniClass Number23-17 13 29
    • OmniClass TitleSecurity Windows
    • CSI UniFormat II CodeB2020
    • CSI UniFormat II TitleExterior Windows
