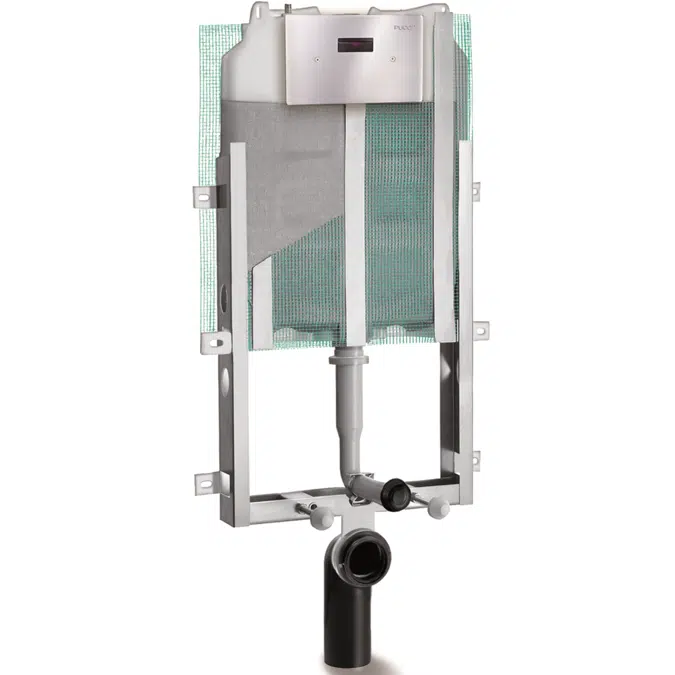

Toilet cisterns PUCCI ® SARA TRONIC 9l / 6l / 4l MONTAGGIO RAPIDO ®

FOR BRICK WALLS - WALLS OR FRONT ASSEMBLY - FOR WALL MOUNTED BOWL

FIELDS OF APPLICATION 2122000201

Specification

FEATURES AND EQUIPMENT - Polyethylene tank 8 cm total thickness - Anti-condensation - Plaster holder pre-built mesh - Water connection from above misaligned on the left - 1/2” stop cock with support - 23 x 25 cm flush pipe and protection cap - Ø 60-40 mm rubber plug - From Ø 40 mm to Ø 45 extension socket, OR 143 and Ø 55-44 mm clamp - Gasket lubricant package - Foam protection for door and inner parts - 220 VAC - 12 VDC power suppy with 3 m cable and connector - Stainless steel cover plate with IR sensor vandal proof locking screws sup. plied with wrench - Inspection door with servomotor and board with bluetooth - Recessed box and sheath 3 m - Powder coated frame with 6 expandible fastening straps - Distance between bowl fitting holes 180/230 mm - 2 M12 threaded rods with bowl fixing nuts - Ø 90 mm snap collar for flush curve - Ø 90 mm PE flush curve mm with gasket - Ø 90 mm protection cap - Ø 90 mm extended sleeve with gasket - 2 washers with eccentric short joint for WC regulation - 2 protection caps - Fixing materials, brackets and plugs TECHNICAL DATA dynamic pressure 0,1-10 bar maximum water temperature 25°C rinsing regulation range 9l - 6l - 4l rinsing quantity predetermined setting - out 9l user detection distance from 0.5 to 1.5 metres preordained setting 0.8 metres sensor incline for normal bowls

Technical specification
