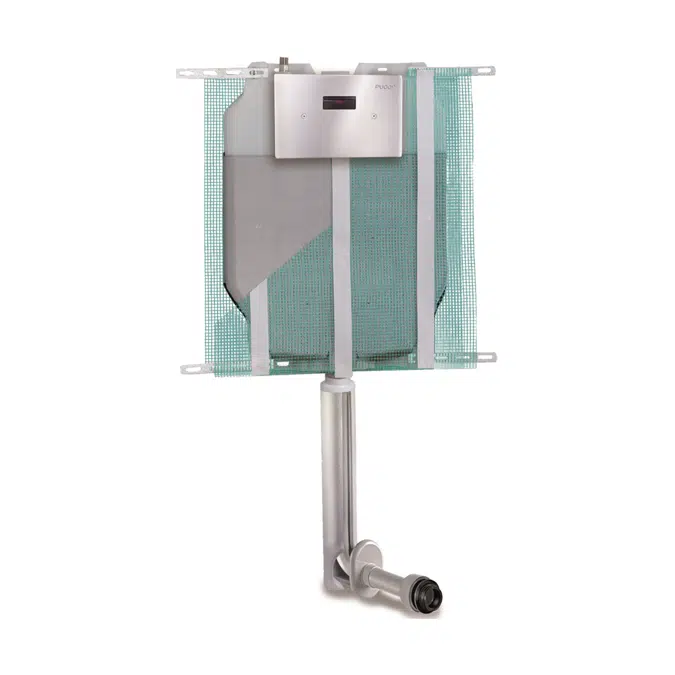

Toilet cisterns PUCCI ® SARA TRONIC 9l / 6l / 4l

ELECTRIC PULSE - FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

FIELDS OF APPLICATION

Specification

FEATURES AND EQUIPMENT - Polyethylene tank 8 cm total thickness - Anti-condensation - Plaster holder pre-built mesh - Water connection from above misalinied on the left - 1/2” stop cock with support - 4 supporting brackets with tank vastening screws - 35 x 11 cm adjustable flush pipe (+2-2 cm) - Foam protection, convers and cap for rinsing pipe ajustment - Eccentric escutcheon and 22 cm joint - Ø 48-58 mm combined clamp with clamp cover - From Ø 40 mm to Ø 45 mm extension socket, OR 143 and Ø 55-44 mm clamp - Gasket lubricant package - Foam protection for door and inner parts - 220 VAC - 12 VDC power suppy with 3 m cable and connector - Stainless steel cover plate with IR sensor vandal proof locking screws supplied with wrench - Inspection door with servomotor and board with bluetooth - Recessed box and sheath 3 m TECHNICAL DATA dynamic pressure 0,1-10 bar maximum water temperature 25°C rinsing regulation range 9l - 6l - 4l rinsing quantity predetermined setting - out 9l user detection distance from 0.5 to 1.5 metres preordained setting 0.8 metres sensor incline for normal bowls

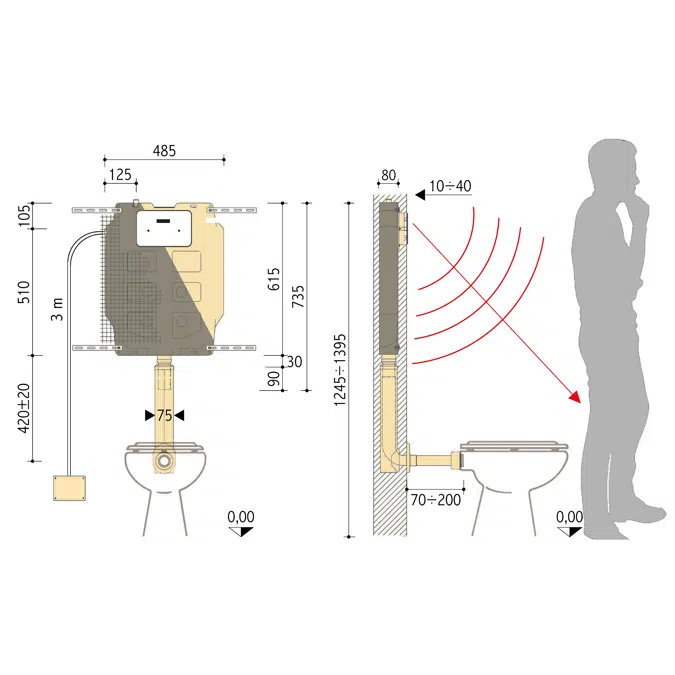

Technical specification
