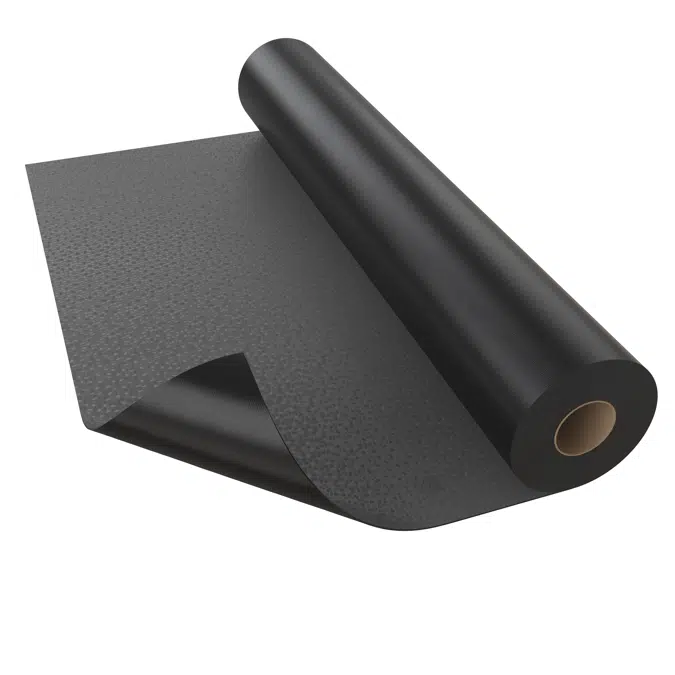

Protan SE 1,2 mm Roofing Membrane

Protan SE specifications are subject to availability and may not be available or approved in all countries/regions.

Dimensions (thickness/width/length)

• 1,2 mm x 0,67 m x 20 m
• 1,2 mm x 1,00 m x 20 m
• 1,2 mm x 2,00 m x 20 m
• 1,2 mm x 3,96 m (prefabricated)x 20 m

Weight

• 1400 g/m²

Colours (nearest RAL code)

• Dark grey F94 - RAL 7012
• Light grey F91- RAL 7040
• Copper green F41 - RAL 6021
• Red F12 - RAL 3013
• White/Cool Roof F01- RAL 9003-9016
• Black FX9- RAL 9004

Materials

Protan SE 1,2 contains stabilizers which makes the product resistant to high and low temperatures, UV-resistant and flame retardant.

• PVC 40-42  %
• Plasticizer 31-33  %
• Polyester textile 5 -7  %
• Fire-, heat-and UV-stabilizers 20-23 %

Reference service life, product

Typical 35 years.

Fire Classification

Protan SE exposed roof systems are classified according to EN 13501-5. Fire classifications are available on a variety of constructions and insulation types. Please contact Protan for further information or refer to the relevant technical approvals.
