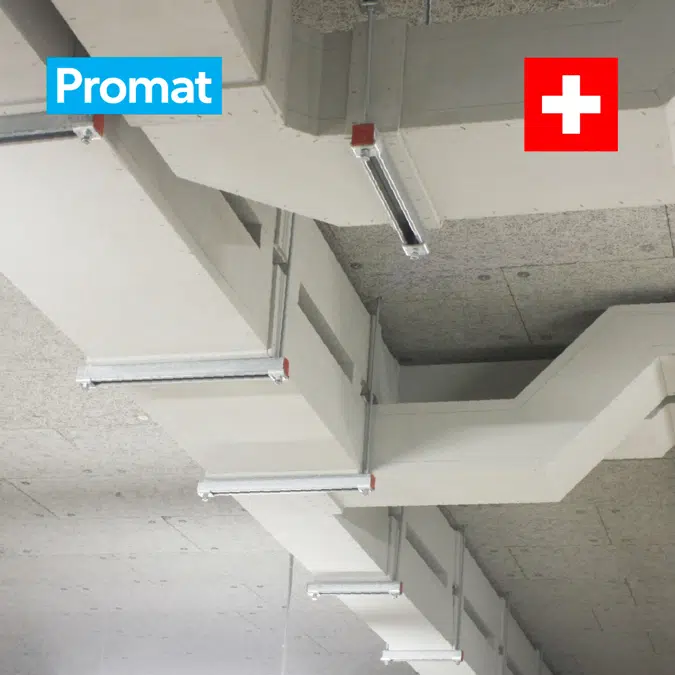

PROMATECT-AD Ventilation-Duct mounted to the Ceiling

PROMATECT-AD Ventilation-Duct mounted to the Ceiling

PROMATECT-AD Ventilation-Duct mounted to the Ceiling

PROMATECT-AD Ventilation-Duct mounted to the Ceiling

PROMATECT-AD independent ventilation duct

All vertical and horizontal ventilation ducts made with our PROMATECT®-AD non-combustible calcium silicate panels offer optimisation of installation, space and fire resistance.
This design allows direct mounting to the ceiling, which saves space and money. Furthermore, this design can be combined with suspended ventilation.

Specification

Standard <1.25 x 1.00 m v1_250116

VKF-Nr. 33034
Characteristics
- Space-saving, directly mounted to the ceiling
- Cost-effective... without hangers
- Large cross-sections - no bracing up to 1.25 x 1.00 m
- large, ready-to-install inspection opening
- can be combined with suspended ventilation 472
- approve
- Planning aids
Promat-material
• PROMATECT®-AD fire protection building board
• PROMATECT®-H fire protection building board
• Adhesive K84 - Promat®

Technical specification

Unique ref.promatect-ad-lueftungsschacht-deckenmontage
Product familyDucts
Product groupPromat Switzerland
TypeAssembly (multiple objects)
Date of publishing2025-01-16
Edition number1
Height (mm)1000
Width (mm)1250

Links

Product urlhttps://www.promat.ch/de/brandschutz-produkte/lueftungen-und-entrauchungen/lueftungskanaele-selbstaendig/473
Instruction videohttps://www.promat.ch/de/bim/bim-mediathek

Related

Designed inSwitzerland
Manufactured inSwitzerland

Classification

BIMobject CategoryHVAC - Ductwork

Region availability

Europe
Switzerland
