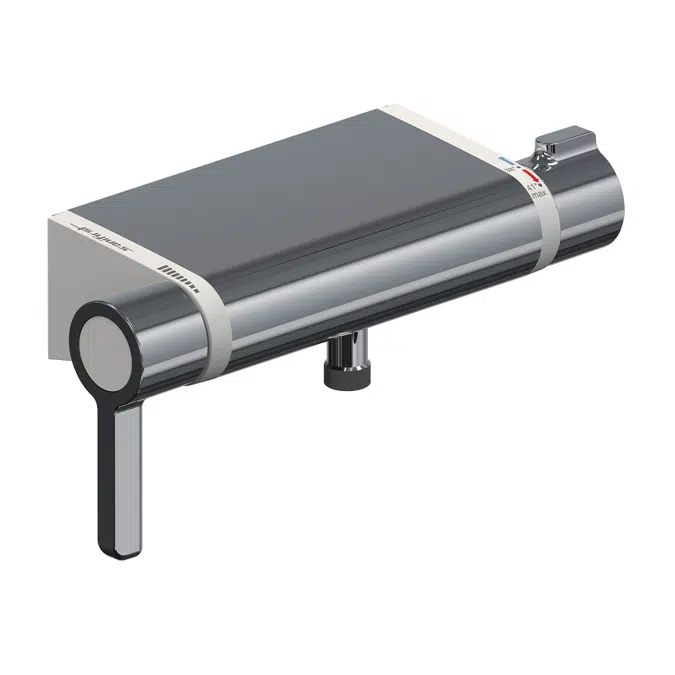

75700 - SANIFIRST - HEALTHCARE TAPS - MASTERMIX Thermostatic shower mixer - Wall-mounted downward outlet

> Benefits of the product

• Certified NF medical classification E.C.A.U.M: E0 Ch2 A1 U3
• MASTERMIX PATENTED TECHNOLOGY
• Ingenious combination of specific ceramic cartridge and thermostatic cartridge: safety and reliability.
• No cross-connection between hot water and cold water.
• Without check-valves
• Cold body: anti-scalding insulation
• Body with smooth interior: limits the risk of bacterial proliferation (legionela,pseudomonas...)
• Dual safety temperature limiter (38°C and 41°C) and adjustement of maximum flow limiter
• Temperature stability and anti-scalding safety
• Quick and easy Installation and maintenance.
• Safe thermal shock: only accessible by technical staff
• Excentric connectors with 1/4 turn stop valves included
• Body docking with the wall: optimized cleaning of all contact surfaces

> Anti-scalding safety

• Temperature knob with double temperature limiter 38 ° C and 41 ° C. Unlocking secured for thermal shock and accessible only by technical services without removing the knob.

> Anti-bacterial proliferation safety

• Unique and patented DCW and DHW anti-intercommunication system, allowing the removal of the non-return valves on the DCW and DHW inlets of the mixing valve, produced by a ceramic
• cartridge and a thermostatic cartridge conforming to NF EN 1111

> Model

• MASTERMIX thermostatic shower mixer without pressurized mixing chamber (avoiding DCW and DHW intercommunication upstream of the shutter).
• Certified NF medical classification (NF 077-15)
• Adjustable temperature from 18 to 41 ° C

> Flow rate

• Maximum flow rate adjustable to 6 - 9 - 12 L /min by the manager

> Recommended pressure

• 3 bar - avoid pressure differences greater than 1 bar between DHW and DCW.
• Minimum pressure: 1 bar.
• Maximum pressure: 5 bar.

> Material

• Rotating ergonomic body and knobs in chrome-plated zamak

> Connection

• Exclusively using a fixing plate with M G'1 / 2 connection 150 +/- 10mm center distance integrating stop valves, filtration and acoustic connection (supplied)
• Shower outlet M'1 / 2 downwards with integrated check valve

> Warranty

• 10 years against any manufacturing defect.
• 3 years for the thermostatic cartridge.
