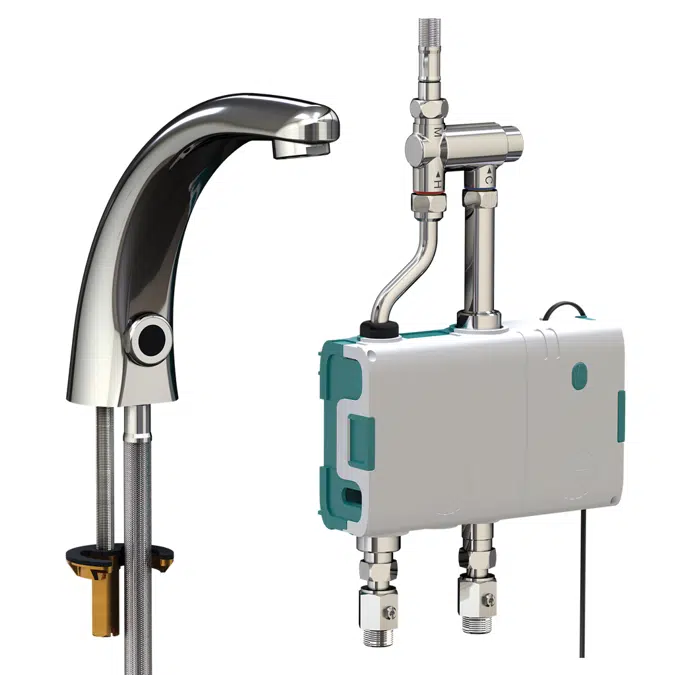

74014 - SANIFIRST - HEALTHCARE TAPS - Kit - Electronic box + electronic faucet 75209 with mains connection

> Benefits of the product

• Aesthetic, secure casing to reduce the risk of CW/DW intercommunication, and therefore the development of bacteria.
• MASTERMIX" function: Innovative combination of 2 solenoid valves and a thermostatic regulator: safe and reliable. No pressurised mixing chamber upstream of the
• obturator (NF Medical standard requirement).
• No non-return valve.
• Easy maintenance: housing with integrated 1/4-turn shut-off valves and thermostatic regulator accessible to the technician.
• Temperature maintenance and anti-scald safety
• Secure thermal shock: accessible only by technical services, by pressing and holding the button on the front of the box and switching on the thermostatic controller to
• full heat.
• Supplied with a fixed electronic faucet, projection 200, reference 75209

> Thermostatic regulator

• Recommended operating pressure: 1 to 5 bar. Permissible pressure difference between inlets: 2:1
• Flow rate: regulated at 6 l/min
• Hydraulic characteristics: M3/8" hot water inlet - M3/8" cold water inlet - M3/8" mixed water outlet
• Temperature preset at 38°C, adjustable by the installer from full hot to full cold
• Recommended temperature setting range: 34 to 45°C
• Hot water supply temperature: 55 to 65°C
• Cold Water supply temperature: 5°C to 25°C
• Minimum differential temperature: 15°C (between hot water inlet and mixed outlet)
• Thermal disinfection settings: up to 80°C
• Anti-scald: instant shut-off of hot water in the event of cold water cut-off
• Supplied with filters

> Box supplied with :

• 1 thermostatic mixing valve
• 2 silicone membrane solenoid valves
• 1 pair of G 3/8" shut-off taps
• 1 wall-mounted transformer

> Warranty

• 3 years on the thermostatic controller
• 1 year against manufacturing defects on all other components
