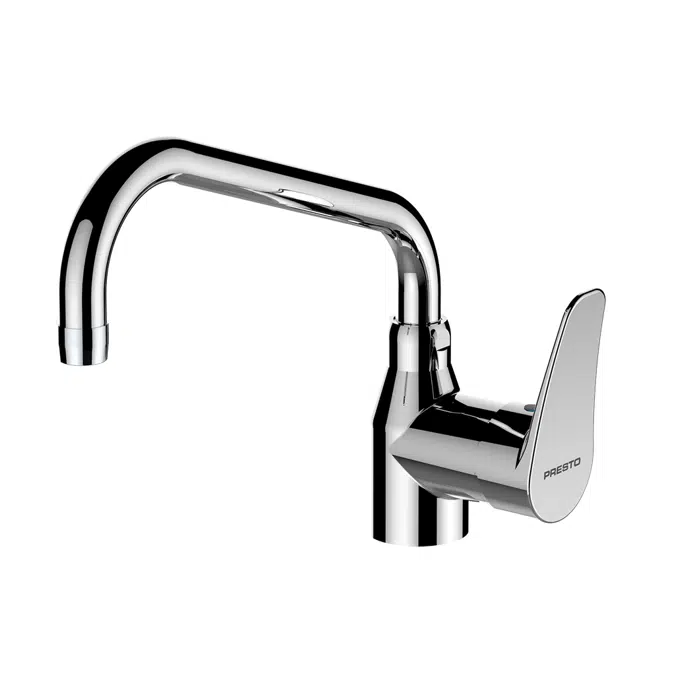

70832 - PRESTO CHEF Special ' Under Counter ' Bar- Deck-mounted mixer tap

> THE PRODUCT BENEFITS

• Special "Bar" application:
• the spout is hidden under the counter: more aesthetic
• offset of the joystick on the side: easy access for washing
• Resistant to intensive use
• Reinforced body / spout interface with double sliding bearings: no play and high endurance
• Robust spout: Ø 22 mm - thickness 1.5mm
• Ergonomic and robust control: easy grip
• Hygiene: spout with smooth interior
• Product design
• Ease of cleaning
• Ease of maintenance: availability of all spare parts
• Flow straigntener to channel water and avoid lateral water splashes

> TECHNICAL SPECIFICATIONS

> Model:

• 360 ° swivel spout 250 mm projection. Height under spout 146 mm - diameter 22 mm
• Spout thickness: 1.5 mm
• Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
• Interchangeable anti-tartar flow straightener

> Recommended working pressure:

• 1 to 5 bars

> Flow rate:

• 25L / min at 38°C at 3 bar

> Hydraulic supply:

• G 1/2 '' (15x 21)

> Material and color of finish:

• Chromed brass body and spout
• Material compliant with the "UBA" list

> Thermal resistance :

• Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with:

• 1 fixing bracket
• 2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
• 2 filters

> Option:

• Possibility of adding an extension sold separately, facilitating the passage of large containers

> Standards and approvals:

• Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165
• Nickel-Chrome surface treatment according to NF EN12540
• Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
