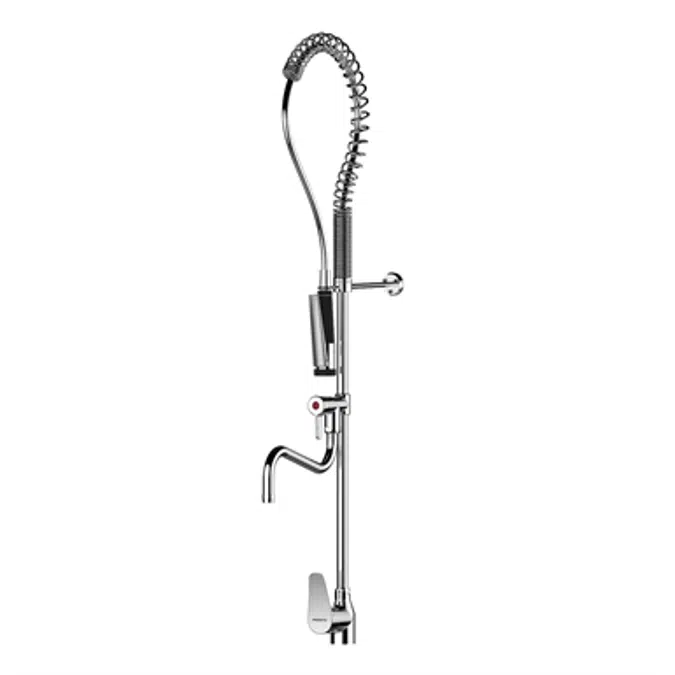

70818 - PRESTO CHEF - Column –deck-mounted mixer – rinsing head

> THE PRODUCT BENEFITS

• Resistant to intensive use
• Spring flexibility
• Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSD
• (musculoskeletal disorder)
• Reinforced body / column interface
• Fast filling of tanks: 20L / min at 3 bar
• Robust mixing handle - possibility of installing it laterally
• Product design
• Adjustable wall support
• PU sheath shower hose to avoid bacterial niches and facilitate cleaning
• Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS

> Model:

• Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
• 1/4 turn ceramic head tap with filling spout Lg 250 mm - adjustable
• Black M 1/2'' hand shower with grip surface limiting the risk of burns. Flow regulated at 12L / min. user adjustable spray: concentrated or wetting. Anti-scale shower
• head. Locking hook for continuous flow. Integrated NF check valve.
• Guide spring for stainless steel hose
• Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
• Adjustable hand shower holder: left or right
• Interchangeable anti-tartar flow straightener

> Recommended working pressure:

• 1 to 5 bars

> Flow rate:

• 20L /min at 3 bar
• Hand shower: 12L /min at 3 bar

> Hydraulic supply:

• G 1/2 '' (15x 21)

> Material and color of finish:

• Body, spout and column in chromed brass
• Injected metal hook
• Material compliant with the "UBA" list

> Thermal resistance :

• Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with :

• 1 fixing bracket
• 2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
• 1 filter
• 1 stainless steel braided hose (hand shower) Lg 1m surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum

> Standards and approvals:

• Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165
• Nickel-Chrome surface treatment according to NF EN12540
• Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
