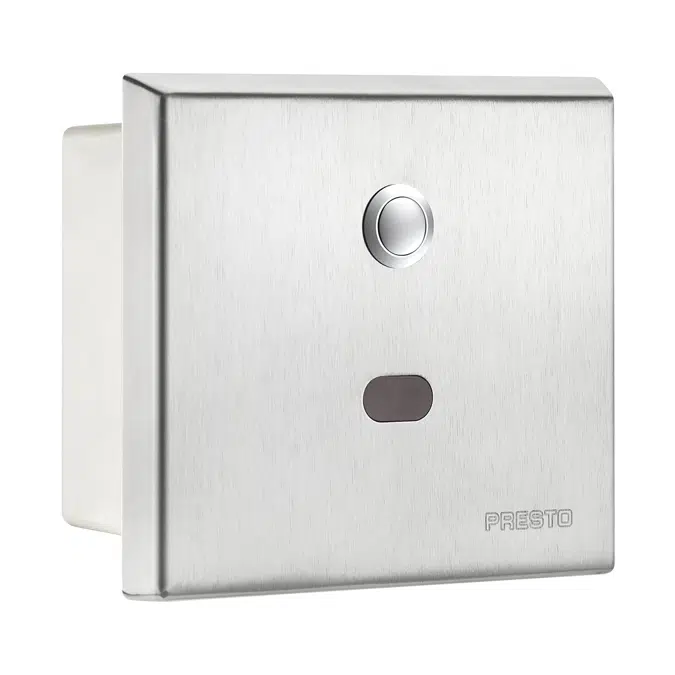

55610 - PRESTO URINAL SENSOR TAP

> Working pressure :

• 1 to 5 bar

> Discharge volume :

• 0.8L/Flush
• Very Good discharge volume level (2 ticks) according to WELS requirements

> Flow time :

• 6 seconds

> Operation :

• Automatic flush by optoelectronic detection
• Manual over-ride button

> Hydraulic supply :

• Built-in M G 1/2'' (15x21) in-line inlet/outlet water

> Power supply :

• 6 V Lithium battery type CRP2 in a IP67 waterproof case, integrated in flush valve body

> Material and colour finish :

• Anti-vandal stainless steel grade 304L front cover with brushed finish
• Body in brass

> Security :

• The solenoid valve will be closed automatically in case of low battery or any damage of detector

> Delivered with :

• 1 flushing-mounting box
• Fixing wrench
• Wall dowel and mounting screw
• 1 integrated filter stop valve
• Instruction manual

> Standards & approvals :

• Compliant with CE directive EN61000-6-1, EN61000-6-3, DBT 73/23/CEE, 2002/95/CE
• Compliant with PUB Water Efficiency Labelling Scheme (WELS) Requirements - Appendix B
