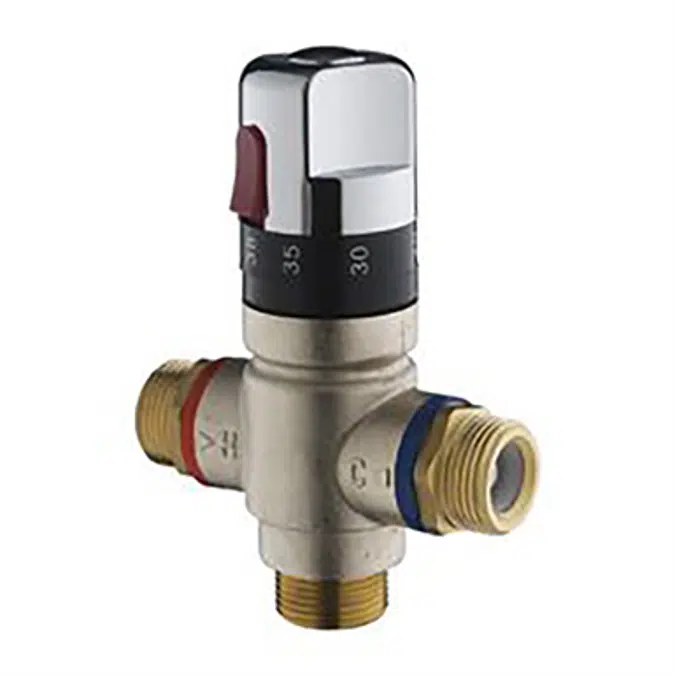

29003 - Thermostatic mixing valve with disconnectable temperature control

> Flow :

• Maximum : 43 l/min à 3 bars
• Minimum : 5 l/min at 3 bar

> Temperature :

• Temperature settings : 30 to 60°C
• Maximum hot temperature : 80°C max
• Minimum differential temperature : 15°C (between hot water inlet and pre-mixed water outlet)
• Temperature stability (nominal) : +/- 2°C

> Hydraulic supply :

• G 3/4" Inlet and outlet
• Couloured rings – Red ring for hot water and blue ring for cold water

> Thermal resistance :

• Designed to sustain temperatures of up to 75°C for 30-minute-thermal-shocks

> Security :

• Anti-scald security: hot water is instantly shut-off if the cold water is cut-off
• Internal temperature limiter at 38°C

> Delivered with :

• 2 Filter gaskets
• 2 NF check valves

> Standards & approvals :

• 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
• Brass body in accordance with EN 1982, EN 12164, EN 12156
