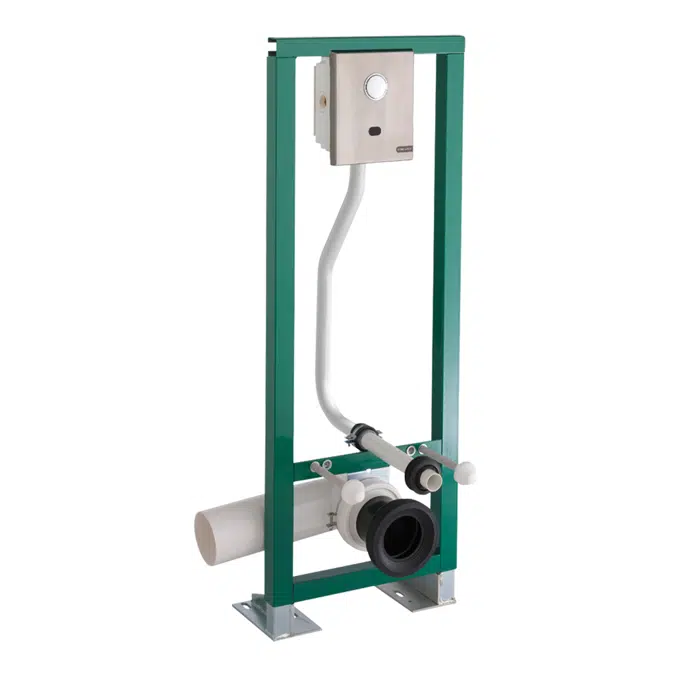

18493 - SELF-SUPPORTING MOUNTING FRAME WITH DIRECT FLUSH VALVE

> Working pressure:

• 1 to 5 bar

> Volume of water delivered (adjustable on request through PRESTO setting tool):

• Small volume: 4l (+/- 1l) Adjustable from 2 to 6l at 2.5 bar
• Large volume: 6l (+/- 1l) Adjustable from 4 to 9l at 2.5 bar
• Volume preset at +/- 1,5l on pressure range from 1,2 to 4 bar
• Anti-water-hammering device
• Automatic 1l/s flow limiter, from 1.2 to 4 bar dynamic working pressure

> Operation:

• Double flush volume automatic detection depending on the time of user presence (4/6l - short/long detection)
• By pass manual 6l push button (flush can be activated in case of power failure)

> Hydraulic supply:

• On PRESTO 1000 XL tap with 3/4" (20x27) integrated stop valve
• Power supply on the right or the left side of the box

> Power supply:

• With mains 7V via 12V / 24V AC or DC. Compatible with 230 V AC / 12 V AC transformer not included ( See Ref. 90464 / 90711/ 90610 / 90685 / 90704 / 90686).

> Material and colour finish:

• 60 micron epoxy coated soldered steel mounting frame
• Galvanized legs and floor fixing plates
• Brass body flush valve
• Anti-vandal brushed stainless steel 304L front plate

> Security:

• Patented anti-blocking "S" system preventing the tap to be blocked in open position to avoid continued water flow
• Vacuum breaker device prevents the contamination of the water network from polluted water backflow
• The solenoid valve will be closed automatically in case of low battery or any damage of detector

> Delivered with:

• 1 Flush valve with stop valve integrated
• 1 Brass coupling nut Male Female 3/4'' (20x27)
• 1 PVC angle tube Ø 32 mm and 1 junction nozzle male 55 mm
• 1 Extended straight PE tube 100 mm with adapter sleeve for connection to the bowl
• 1 WC outlet angle PVC pipe dia. 100 mm
• Screw and dowel for toilet bowl fixing

> Standards & approvals:

• Brass body in accordance with EN 1982, EN 12164, EN 12165
• 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
