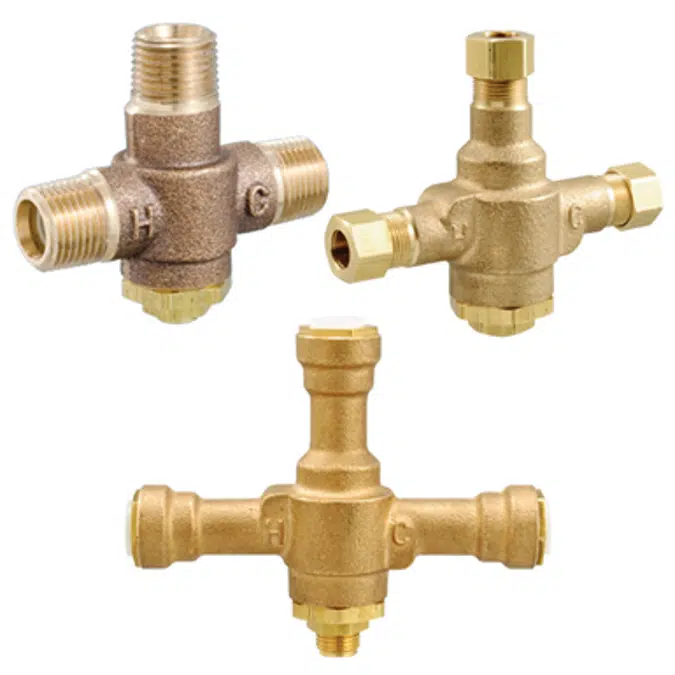

LFe480 / LFG480 Series

Designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. Rugged construction features solid Lead-Free* brass body and corrosion-resistant internal components ensure years of dependable trouble-free service. Temperature adjustment stem is simple to adjust and has a locking nut to prevent tampering. Series LFG480 = 0.25 gpm and Series LFE480 = 0.50 gpm. Listed to ASSE 1070 and IAMPO cUPC.

These models meet the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61.

Features

For lavatory applications where the water temperature must be controlled for safe use
Quickly senses and compensates for outlet temperature fluctuations caused by temperature and pressure changes in the supply line
Adjustable temperature selection with locknut to prevent tampering
Lead-Free* brass body and corrosion-resistant internal components ensure years of dependable service

Specification

Lavatory thermostatic mixing valve shall be ASSE 1070 and cUPC listed. All internal components shall be from corrosion resistant material. The valve must control each performance standard down to 0.25 gpm (1.00 lpm) for LFG480 and 0.5 gpm (1.90 lpm) for LFE480.
Capacity of the valve must be 3 gpm (11 lpm) @ 45psi differential or 4 gpm (15 lpm) @ 45psi differential. Thermostatic lavatory mixing valve shall be constructed using Lead Free* brass material which shall comply with state codes and standards, where applicable requiring reduced lead content. Control temperature must be adjustable between 80–120° F (32–43°C) with a locking nut to prevent unauthorized or accidental adjustment. The valve shall contain integral checks to prevent cross flow and inlet screens to filter debris. The valve shall be a Powers Series LFG480 or LFE480.

Technical specification

Unique ref.LFe480-LFG480_Series
Product familyLavatory Tempering
Product groupTempering Valve
TypeObject (single object)
Date of publishing2018-08-27
Edition number2

Links

Product urlhttps://www.watts.com/products/plumbing-flow-control-solutions/mixing-valves/lavatory-mixing-valves/hydroguard-lfg480lfe480
Installation instructionshttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/35459-source/6512252-is-p-g480-e480
Technical descriptionhttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/36449-source/es-p-lfg480-lfe480

Material mainBrass
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Valves
IFC classificationValve
UNSPSC nameValves
UNSPSC code401416
Uniclass 2015 CodePr_65_54_95_87
Uniclass 2015 DescriptionTempering valves
OmniClass Number23-27 31 29
OmniClass TitleMixing Valves
CSI UniFormat II CodeD20
CSI UniFormat II TitlePLUMBING
